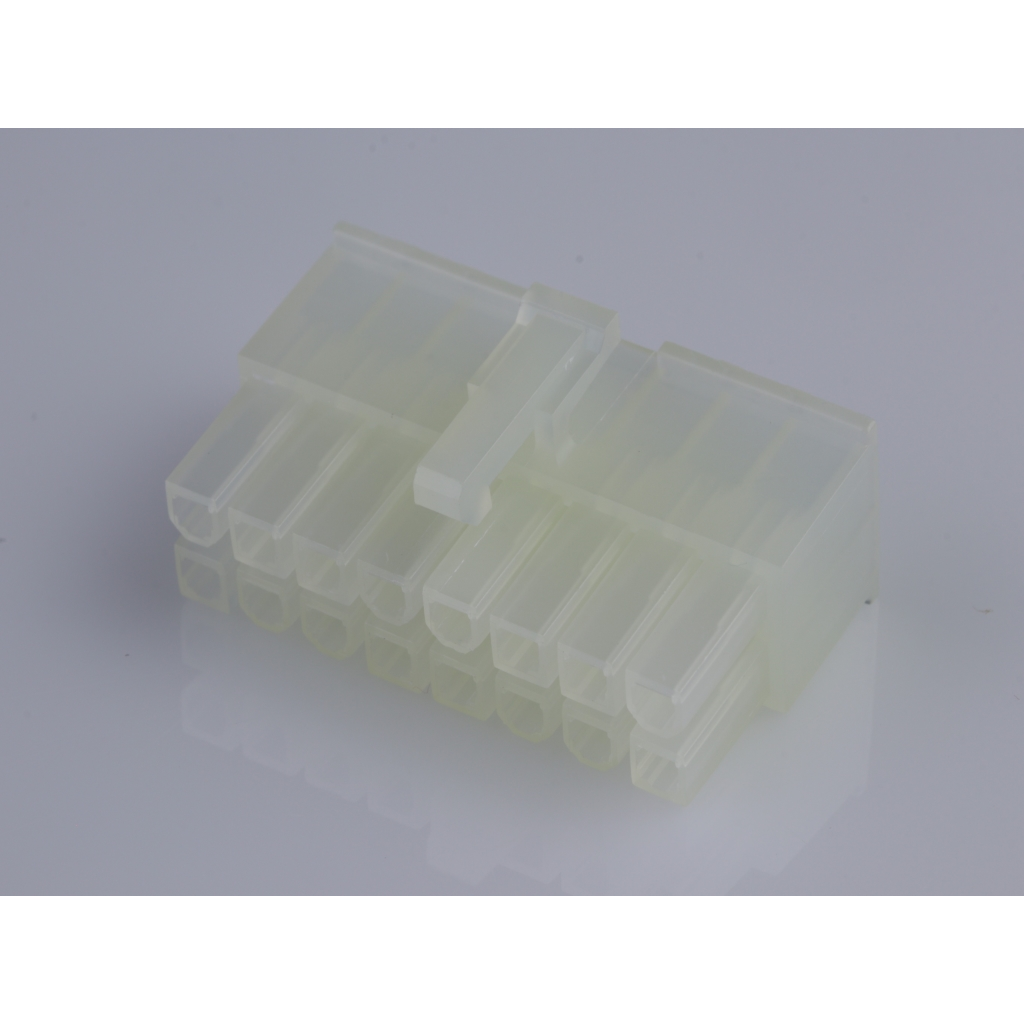

Molex0039012160Einzeladersteckverbinder, Gehäuse
Conn Housing RCP 16 POS 4.2mm Crimp ST Cable Mount Natural Mini-Fit Jr™ Bag
Other Part Names : 39012160
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Housing | |
| RCP | |
| 16 | |
| 2 | |
| Crimp | |
| 4.2 | |
| Straight | |
| 13/Contact | |
| 600VDC|600VAC | |
| 1000 | |
| -40 | |
| 105 | |
| Bag | |
| 3.173 | |
| 34.8 | |
| 19.6 | |
| Mini-Fit Jr™ | |
| Yes | |
| 4.2 | |
| Cable Mount |
Think of Molex's 0039012160 discrete wire housing the next time you need a connection between two circuits but a direct linkage is not possible. This RCP connector has 16 RCP contacts. Its pitch is 4.2 mm. This is a 2-row connector. It has a straight body orientation. It has a receptacle type gender. It has a maximum voltage rating of 600 VDC|600VAC. This device has a maximum current rating of 13 A/contact. 0039012160 is housed in natural nylon 6/6. This product is 34.8 mm long, 15.1 mm tall and 19.6 mm deep. This rectangle connector has an operating temperature of -40 to 105 °C.
