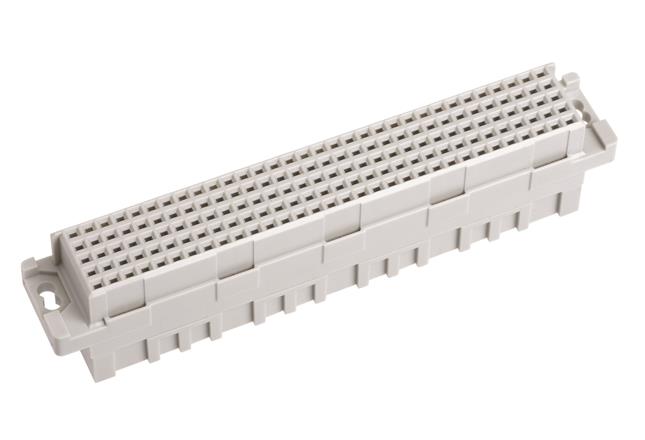

HARTING02050000003Steckverbinder, Mutterplatine
Conn DIN 41612 F 160 POS 2.54mm Solder ST Cable Mount
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| DIN 41612 | |
| F | |
| 160 | |
| Solder | |
| 2.54 | |
| Straight | |
| 1 | |
| 1000000 | |
| 20 | |
| -55 | |
| 125 | |
| 94 | |
| 16 | |
| 11.6 | |
| Cable Mount |
This din 41612 02050000003 backplane connector from Harting will provide an interface between devices. This M connector's 160 contacts that are made out of copper alloy. Its pitch is 2.54 mm. It has a straight body orientation. It has a male type gender. This is a 5-row connector. This device has a maximum current rating of 1 A. This product is 94 mm long, 11.6 mm tall and 16 mm deep. 02050000003 is housed in thermoplastic. It uses the solder termination method. This backplane connector has an operating temperature of -55 to 125 °C.
