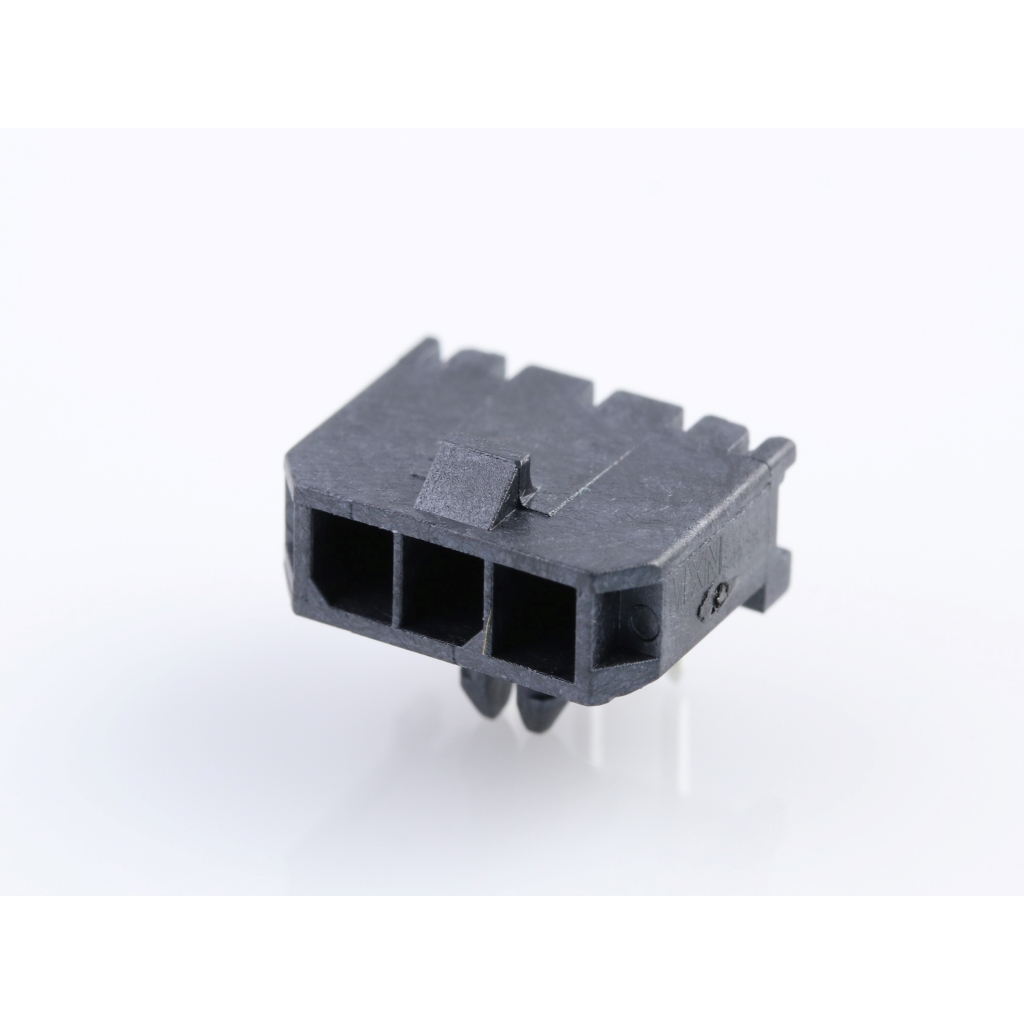

Molex0436500300Steckverbinderleisten und Leiterplattenbuchsen
Conn Wire to Board HDR 3Power POS 3mm Solder RA Side Entry Thru-Hole Micro-Fit 3.0 Tray
Other Part Names : 436500300
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Wire to Board | |
| HDR | |
| 3Power | |
| 1 | |
| Solder | |
| 3 | |
| Right Angle | |
| Center Key | |
| 8.5/Contact | |
| 600V | |
| 1000 | |
| 10 | |
| -40 | |
| 105 | |
| 30 | |
| Tray | |
| 0.668 | |
| 12.65 | |
| 9.9 | |
| 5.57 | |
| Micro-Fit 3.0 | |
| Contact Plating Thickness | (1.52/1.27)um |
| 3.18 | |
| Through Hole |
Use the 0436500300 power connector from Molex to power up your circuit with the least amount of losses. This HDR connector's 3 contacts that are made out of brass and plated with tin over nickel. It has a maximum voltage rating of 600 V. It has a header type gender. It has a right angle body orientation. This connector has a single port. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. 0436500300 is housed in liquid crystal polymer. The item will be shipped in tray orientation. This product is 12.65 mm long, 5.57 mm tall and 9.9 mm deep. This power connector has an operating temperature range of -40 °C to 105 °C. Its 3 terminals use the solder termination method.
| EDA / CAD Models |
