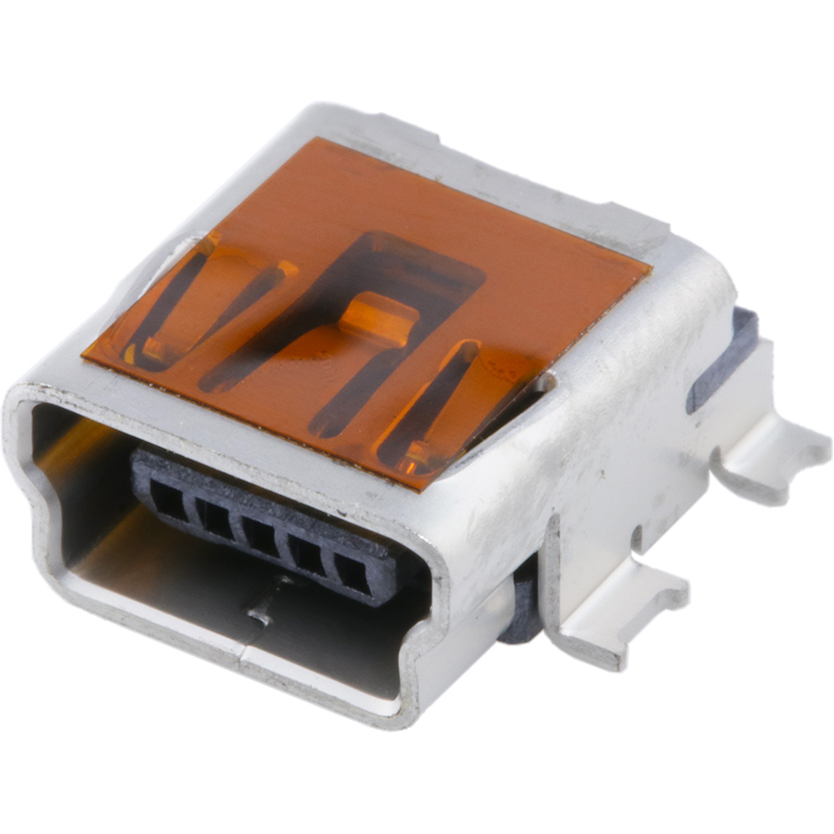

Molex0548191572Connector USB
Conn Mini USB 2.0 Type B RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Mini USB 2.0 Type B | |
| RCP | |
| 5 | |
| 5 | |
| Solder | |
| 0.8 | |
| Right Angle | |
| 1/Contact | |
| 30V | |
| 100 | |
| 50 | |
| 5000 | |
| Copper Alloy | |
| Tin Over Nickel | |
| -20 | |
| 85 | |
| Tape and Reel | |
| 0.6 | |
| 9.9 | |
| 9 | |
| 3.95 | |
| Surface Mount |
Utilize your audio and video with the mini USB type b 0548191572 audio and video connector from Molex. This RCP connector's 5 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 30 V. This connector has a single port. It has a right angle body orientation. It has a receptacle type gender. Its pitch is 0.8 mm. 0548191572 is housed in polyphthalamide. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature range of -20 °C to 85 °C. This product is 9.9 mm long, 3.95 mm tall and 9 mm deep. Its 5 terminals use the solder termination method.
