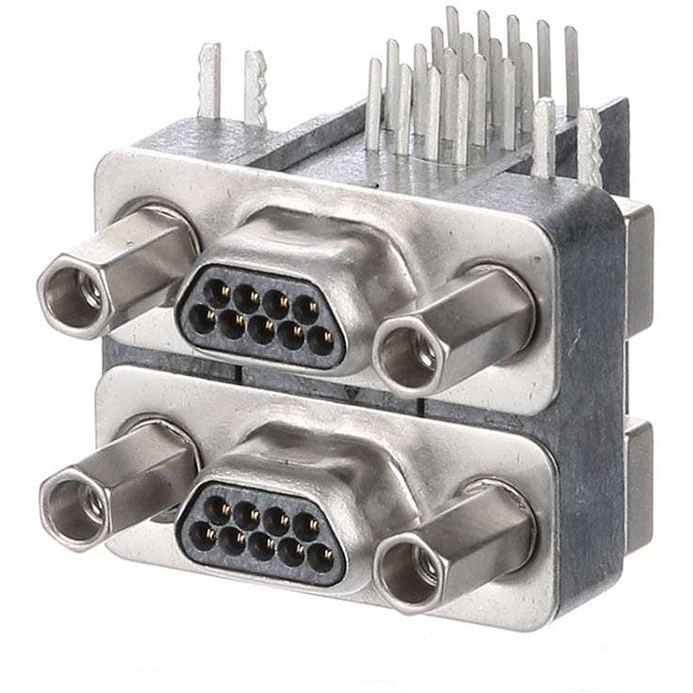

Molex0836199003Steckverbinder, D-Sub
Conn Micro-D F/F 9/9 POS 0.63mm Solder RA Thru-Hole 18 Terminal 2 Port Commercial Micro-D Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Micro-D | |
| PL/PL | |
| 9/9 | |
| 18 | |
| 2/2 | |
| Solder | |
| 0.63 | |
| Right Angle | |
| F/F | |
| 1/Contact | |
| 350VAC | |
| -40 | |
| 125 | |
| 500 | |
| 1/1 | |
| No | |
| Tube | |
| 3.16 | |
| 19.89 | |
| 16.36 | |
| Commercial Micro-D | |
| Contact Plating Thickness | 0.38um |
| Gold | |
| Through Hole |
Using the commercial micro-d 0836199003 DVI connector from Molex is fast and easy for communicating between serial connections in your circuit. It has a right angle body orientation. This 2/2-row connector has 2 ports. Its pitch is 1.27 mm. It has a maximum voltage rating of 350 VAC. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DVI connector has an operating temperature of -55 to 125 °C. This product is 16.13 mm tall. Its 18 terminals use the solder termination method.
