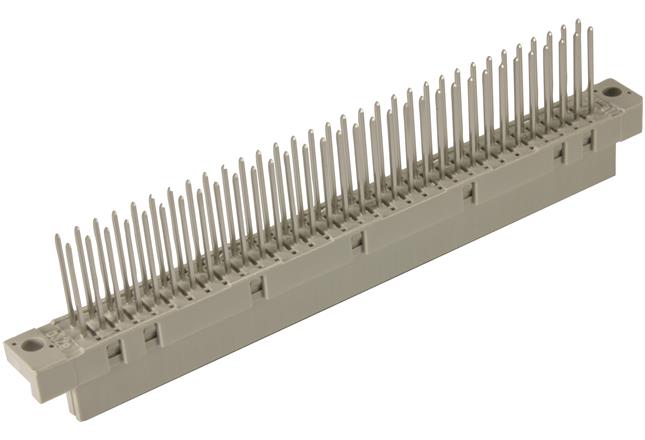

HARTING09022646421Steckverbinder, Mutterplatine
Conn DIN 41612 F 64 POS 2.54mm Solder RA Thru-Hole Box
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| DIN 41612 | |
| F | |
| 64 | |
| Solder | |
| 2.54 | |
| Right Angle | |
| 2 | |
| 1000000 | |
| 20 | |
| -55 | |
| 125 | |
| 400 | |
| Box | |
| 94.9 | |
| 12.64 | |
| 8.5 | |
| Through Hole |
This din 41612 09022646421 backplane connector from Harting will not only link multiple connectors together but also provide an interface between the devices. This M connector's 64 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a male type gender. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 2 A. This product is 94 mm long, 8.5 mm tall and 12.64 mm deep. 09022646421 is housed in thermoplastic. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
