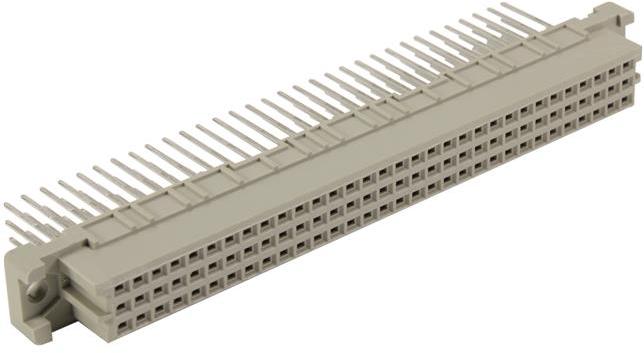

HARTING09032966421Steckverbinder, Mutterplatine
Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole Box
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| DIN 41612 | |
| F | |
| 96 | |
| Solder | |
| 2.54 | |
| Straight | |
| 2 | |
| 1000000 | |
| 20 | |
| -55 | |
| 125 | |
| 400 | |
| Box | |
| 95 | |
| 10.6 | |
| 11.6 | |
| Through Hole |
When you have numerous wires connected in parallel, then use this din 41612 09032966421 backplane connector from Harting to make sure all the data flows through. This F connector's 96 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. This is a 3-row connector. It has a female type gender. This device has a maximum current rating of 2 A. This backplane connector has an operating temperature of -55 to 125 °C. 09032966421 is housed in gray polybutylene terephthalate. This product is 95 mm long, 11.6 mm tall and 10.6 mm deep. It uses the solder termination method.
