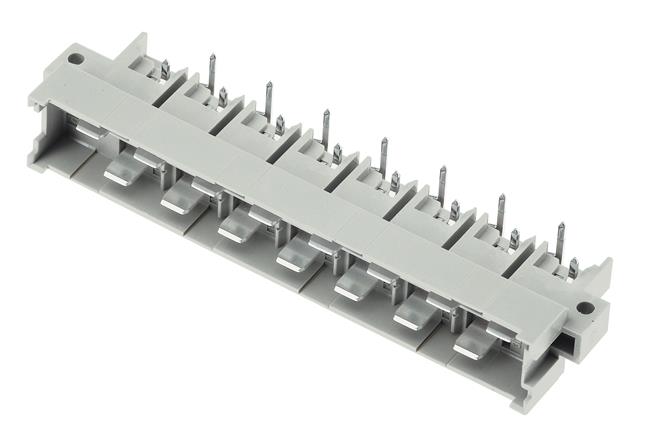

HARTING09061152911222Steckverbinder, Mutterplatine
Conn DIN 41612 M 15 POS 5.08mm Solder RA Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| DIN 41612 | |
| M | |
| 15 | |
| Solder | |
| 5.08 | |
| Right Angle | |
| 15 | |
| 100000 | |
| 8 | |
| -55 | |
| 125 | |
| 500 | |
| 93.95 | |
| 14.7 | |
| Through Hole |
Solder this din 41612 09061152911222 backplane connector from Harting directly onto a PCB to more easily link multiple connectors together. This M connector's 15 contacts that are made out of copper alloy and plated with silver over nickel. It has a male type gender. Its pitch is 10.16 mm. This is a 2-row connector. It has a right angle body orientation. This device has a maximum current rating of 15 A. It uses the solder termination method. This backplane connector has an operating temperature of -55 to 125 °C. This product is 14.7 mm tall. 09061152911222 is housed in light gray polyamide.
