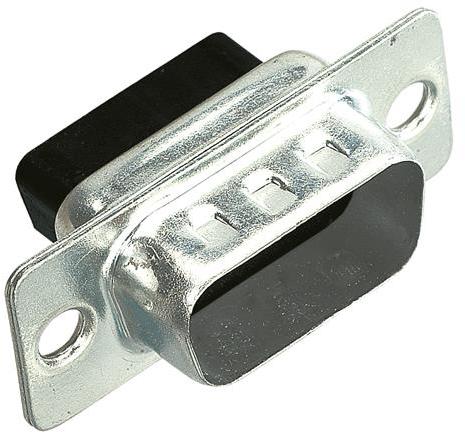

HARTING09562005601Steckverbinder, D-Sub
Conn D-Sub M 26 POS 1.14mm Crimp ST Panel Mount 26 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.30 | |
| Automotive | No |
| PPAP | No |
| D-Sub | |
| PL | |
| 26 | |
| 26 | |
| 3 | |
| Crimp | |
| 1.14 | |
| Straight | |
| M | |
| 5000 | |
| -40 | |
| 85 | |
| Steel | |
| Nickel | |
| A | |
| 39.2 | |
| 12.55 | |
| 24-26 | |
| Black | |
| Copper Alloy | |
| Panel Mount |
This 09562005601 discrete wire housing from Harting can house one or multiple wires and channels for both small electronic devices and larger power applications. This M connector has 26 M contacts. Its pitch is 2.29 mm. It has a straight body orientation. This is a 3-row connector. It has a male type gender. This device has a maximum current rating of 2 A. 09562005601 is housed in steel. This rectangle connector has an operating temperature of -55 to 105 °C. This product is 39.5 mm long, 12.93 mm tall and 15.91 mm deep. Its wire is 24-26 AWG.
