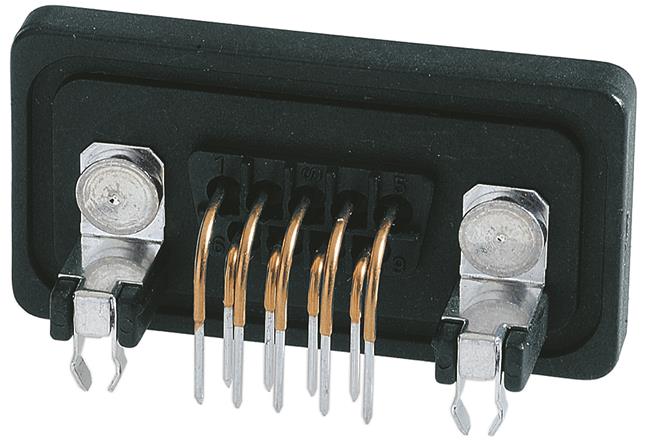

HARTING09675096758Steckverbinder, D-Sub
Conn D-Sub F 9 POS 1.37mm Solder RA Thru-Hole 9 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| SVHC | Yes |
| SVHC überschreitet Schwellenwert | Yes |
| Automotive | No |
| PPAP | No |
| D-Sub | |
| RCP | |
| 9 | |
| 9 | |
| 2 | |
| Solder | |
| 1.37 | |
| Right Angle | |
| F | |
| 5 | |
| 5000 | |
| 25 | |
| -25 | |
| 70 | |
| 500 | |
| Brass | |
| Tin | |
| E | |
| No | |
| 40 | |
| 19.3 | |
| 21 | |
| Noble Metal Over Nickel | |
| Copper Alloy | |
| Through Hole |
Make the most secure connections between serial ports using the 09675096758 DVI connector from Harting. This 2-row connector has a single port. Its pitch is 2.74 mm. This socket type connector's 9 contacts that are made out of copper alloy and plated with gold. It has a right angle body orientation. This device has a maximum current rating of 5 A. This product is 40 mm long, 21 mm tall and 19.3 mm deep. Its 9 terminals use the solder termination method. This DVI connector has an operating temperature of -25 to 70 °C.
