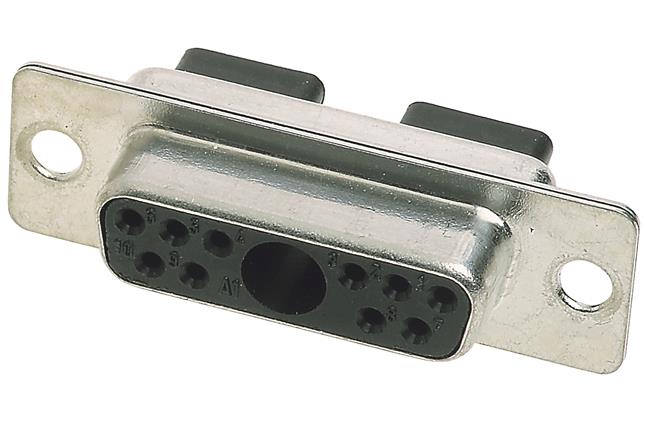

HARTING09692020111Steckverbinder, D-Sub
Conn D-Sub F 1Power/10Signal POS Crimp ST Cable Mount 11 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.30 | |
| Automotive | No |
| PPAP | No |
| D-Sub | |
| RCP | |
| 1Power/10Signal | |
| 11 | |
| 2 | |
| Crimp | |
| Straight | |
| F | |
| 5 | |
| 5000 | |
| -55 | |
| 125 | |
| Steel | |
| Tin | |
| 1 | |
| 39.1 | |
| 16.9 | |
| 12.5 | |
| Black | |
| Cable Mount | |
| Copper Alloy |
If you are in need of a direct board to socket connection, look no further than this 09692020111 discrete wire housing from Harting. This F connector has 1coaxial / 10signal F contacts. It has a straight body orientation. It has a female type gender. This device has a maximum current rating of 5 A. 09692020111 is housed in steel. This product is 39.1 mm long, 12.5 mm tall and 16.9 mm deep. This rectangle connector has an operating temperature of -55 to 125 °C.
| EDA / CAD Models |
