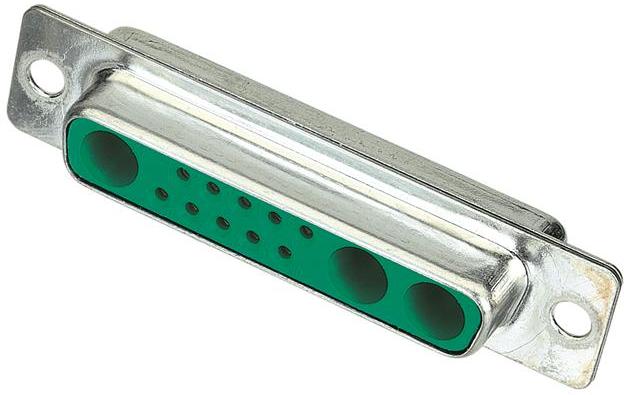

HARTING09693017133Steckverbinder, D-Sub
Conn D-Sub F 10Signal/3Cavity POS Solder Cup ST Panel Mount 13 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| SVHC | Yes |
| SVHC überschreitet Schwellenwert | Yes |
| Automotive | No |
| PPAP | No |
| D-Sub | |
| RCP | |
| 10Signal/3Cavity | |
| 13 | |
| Solder Cup | |
| Straight | |
| F | |
| 5 | |
| 3 | |
| -55 | |
| 125 | |
| 500 | |
| Steel | |
| Tin | |
| 53 | |
| 12.6 | |
| 12.5 | |
| Panel Mount | |
| Copper Alloy |
Be sure to set up proper communication between your serial connections with the 09693017133 DVI connector from Harting. This connector has a single port. It has a straight body orientation. This female connector's 10signal / 3cavity contacts that are made out of copper alloy. This device has a maximum current rating of 5 A. 09693017133 is housed in steel. Its 13 terminals use the solder cup termination method. This product is 53 mm long, 12.5 mm tall and 12.6 mm deep. This DVI connector has an operating temperature of -55 to 125 °C.
