Grayhill10-100Druckknopfschalter

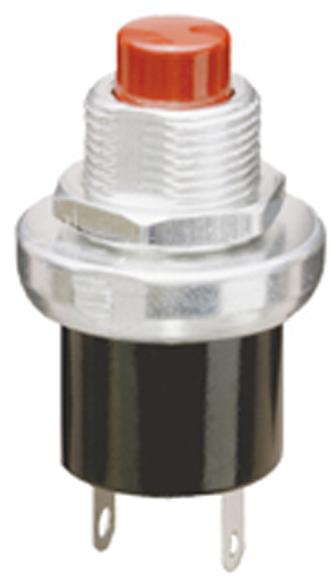

Switch Push Button N.O. SPST Round Plunger 1A 220VAC Momentary Panel Mount Solder Lug
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.31 | |
| Automotive | No |
| PPAP | No |
| Momentary | |
| SPST | |
| Round Plunger | |
| N.O. | |
| Threaded | |
| 1@115VAC | |
| 1000VAC | |
| 1000 | |
| <=25 | |
| 100000 | |
| Red | |
| 4.06 | |
| Panel Mount | |
| Solder Lug | |
| 2 | |
| Terminals | |
| Epoxy | |
| Thermoset Plastic | |
| Straight | |
| -40 | |
| 85 | |
| 15/32-32 | |
| 20.32 | |
| 20.32 | |
| 38.1 |
Manually control your circuit components with this 10-100 push button switch from Grayhill. It has a SPST configuration. This device has a maximum current rating of 1 A @ 115VAC. This push switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 10-100 push switch has a solder lug termination style. This product is 20.32 mm long, 38.1 mm tall and 20.32 mm deep. The maximum AC voltage rating is 220 VAC.
