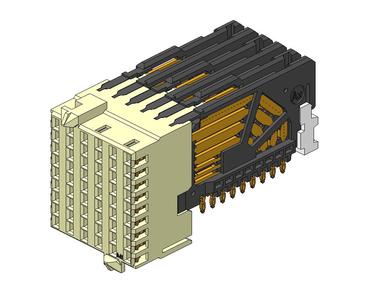

Amphenol Communications Solutions10053656-101LFSteckverbinder, Mutterplatine
AirMax VS®, Backplane Connectors, 3-Pair, 54 -position, 2mm pitch, 6 column, Right Angle Receptacle
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Hard Metric | |
| RCP | |
| 54 | |
| Press Fit | |
| 2 | |
| Right Angle | |
| -55 | |
| 85 | |
| Tube | |
| 11.9 | |
| 26.9 | |
| 15.5 | |
| AIRMAX® | |
| 1.6 | |
| Through Hole |
Solder this hard metric 10053656-101LF backplane connector from FCI directly onto a PCB to more easily link multiple connectors together. This RCP connector's 54 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. This is a 9-row connector. It has a right angle body orientation. Its pitch is 2 mm. This product is 11.9 mm long, 15.5 mm tall and 26.9 mm deep. It uses the press fit termination method. 10053656-101LF is housed in natural thermoplastic.
