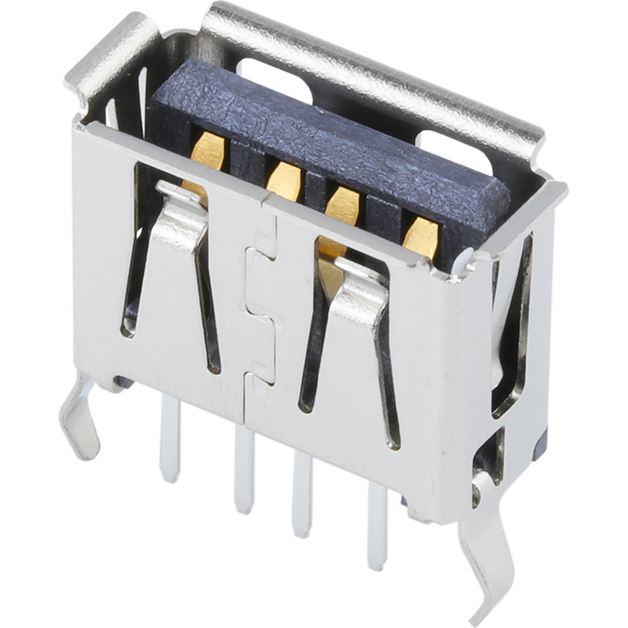

Molex1050570001Connector USB
Conn USB 2.0 Type A RCP 4 POS 2mm/2.5mm Solder ST Thru-Hole 4 Terminal 1 Port USB 2.0 Tray
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| USB 2.0 Type A | |
| RCP | |
| 4 | |
| 4 | |
| Solder | |
| 2/2.5 | |
| Straight | |
| 1.5/Contact | |
| 30V | |
| 1000 | |
| 30 | |
| 20000 | |
| Stainless Steel | |
| Nickel | |
| -40 | |
| 85 | |
| Tray | |
| 1.16 | |
| 14.68 | |
| 7.25 | |
| USB 2.0 | |
| 10.5 | |
| Through Hole |
Make your product's components work properly with the usb type a 1050570001 audio and video connector from Molex. This RCP connector's 4 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2 mm. It has a straight body orientation. It has a receptacle type gender. It has a maximum voltage rating of 30 V. This connector has a single port. This device has a maximum current rating of 1.5 A/contact. 1050570001 is housed in thermoplastic. This component will be shipped in tray format. This product is 14.68 mm long, 7.25 mm tall and 14.3 mm deep. This part has an operating temperature range of -40 °C to 85 °C. Its 4 terminals use the solder termination method.
