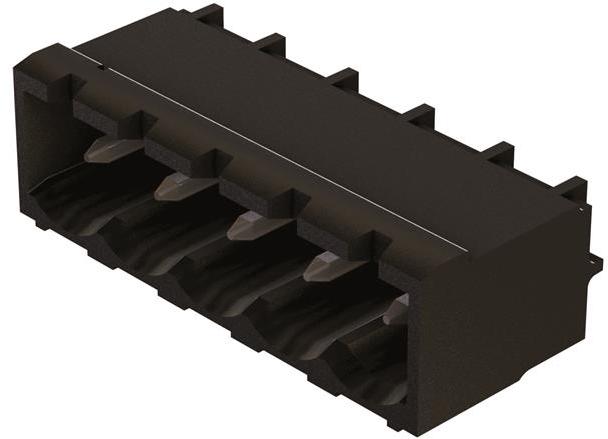

HARTING14120617002000Steckverbinderleisten und Leiterplattenbuchsen
Conn Shrouded Header (4 Sides) HDR 6 POS 5.08mm Solder RA Side Entry Thru-Hole har-flexicon® Bulk
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Shrouded Header (4 Sides) | |
| HDR | |
| 6 | |
| 1 | |
| Solder | |
| 5.08 | |
| Right Angle | |
| 15 | |
| 250V | |
| 1000 | |
| 15 | |
| -40 | |
| 110 | |
| Bulk | |
| 4.14 | |
| 32.28 | |
| 12 | |
| 8.65 | |
| har-flexicon® | |
| 2.6 | |
| Through Hole |
Support physical configuration options for jumper posts by mounting this shrouded 14120617002000 header connector from Harting. This HDR connector's 6 contacts that are made out of copper alloy and plated with tin. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 300 V. Its pitch is 5.08 mm. It has a header type gender. This device has a maximum current rating of 15 A. It uses the solder termination method. This product is 32.28 mm long, 8.65 mm tall and 12 mm deep. 14120617002000 is housed in black polyamide/polyphthalamide. This connector has an operating temperature of -40 to 110 °C.
| EDA / CAD Models |
