Lumberg1502 03Steckverbinder für Audio und Video

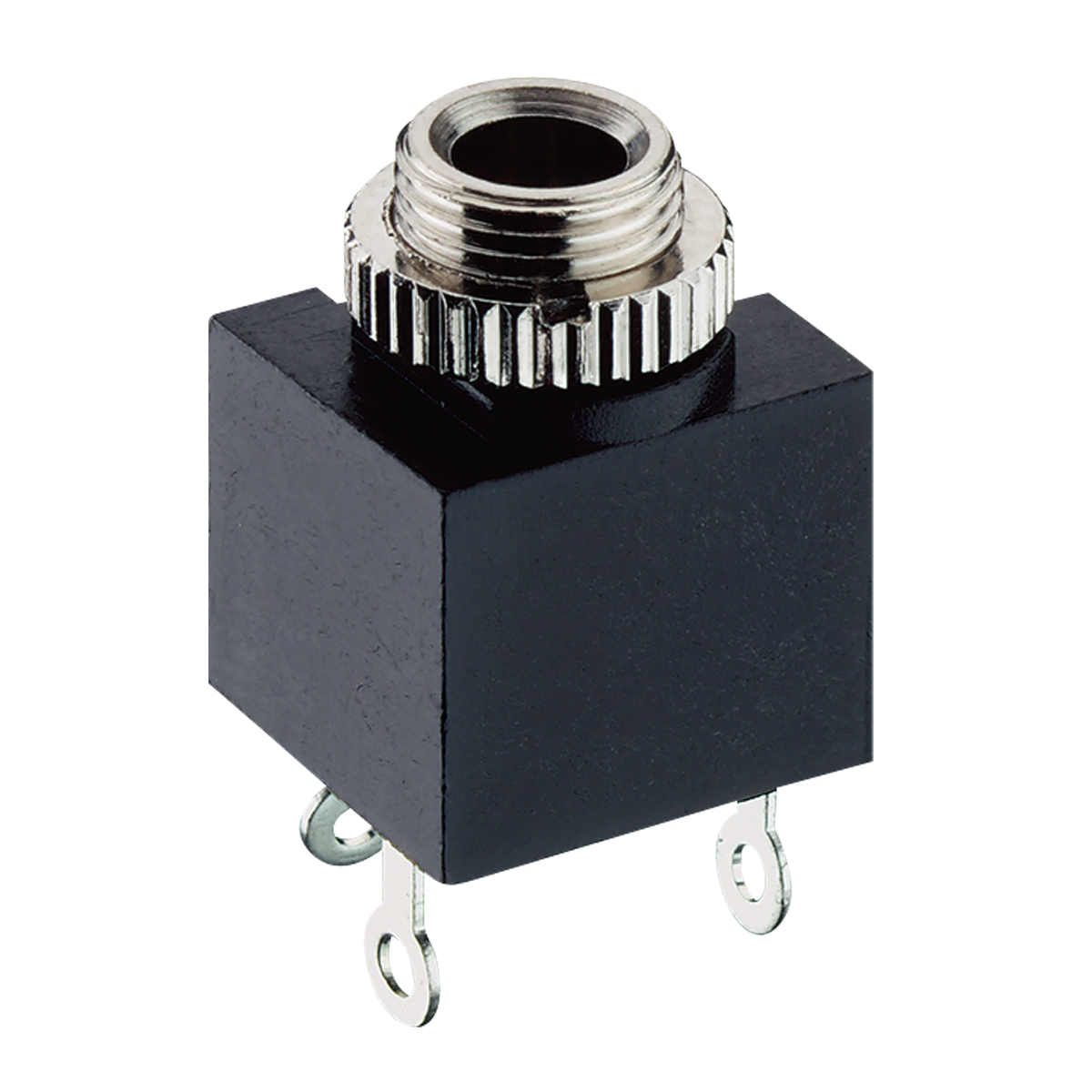

Conn 3.5MM Mono Jack F 2 POS Solder RA Thru-Hole 3 Terminal 1 Port Bulk
| Compliant | |
| EAR99 | |
| Active | |
| Automotive | Unknown |
| PPAP | Unknown |
| 3.5MM Mono Jack | |
| F | |
| 2 | |
| 3 | |
| Solder | |
| Right Angle | |
| 1 | |
| 34VDC|34VAC | |
| 100 | |
| 20 | |
| -20 | |
| 70 | |
| 5000 | |
| Bulk | |
| 9 | |
| 19 | |
| 10.5 | |
| Through Hole | |
| Polycarbonate | |
| Silver Over Nickel | |
| Brass |
Sync up your sound and picture with this 3.5mm mono jack 1502 03 audio and video connector from Lumberg. This F connector's 2 contacts that are made out of brass and plated with silver over nickel. This connector has a single port. It has a female type gender. It has a right angle body orientation. It has a maximum voltage rating of 34 VDC|34VAC. 1502 03 is housed in polycarbonate. This device has a maximum current rating of 1 A. This product comes packaged in bulk, so the parts will be stored loosely. This product is 9 mm long, 10.5 mm tall and 19 mm deep. Its 3 terminals use the solder termination method. This part has a minimum operating temperature of -20 °C and a maximum of 70 °C.
| EDA / CAD Models |
