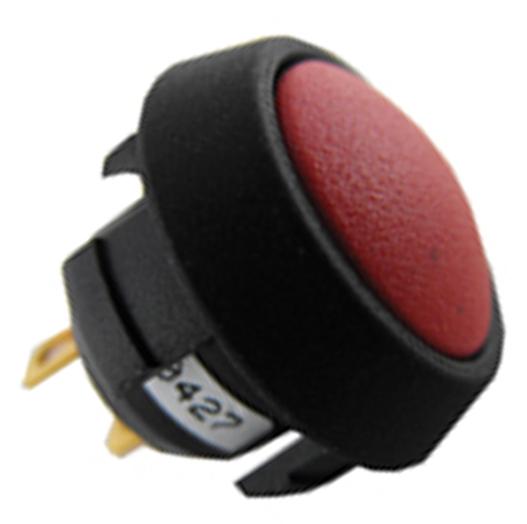

Grayhill30-100Druckknopfschalter
Switch Push Button N.O. SPST Round Button 0.15A 24VDC Momentary Panel Mount Solder Lug
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.35 | |
| Automotive | No |
| PPAP | No |
| Momentary | |
| SPST | |
| Round Button | |
| N.O. | |
| Unthreaded | |
| 0.15@24VDC | |
| 1000VAC | |
| 1000 | |
| 25 | |
| 500000 | |
| Black | |
| 2.03 | |
| 1 | |
| Panel Mount | |
| Solder Lug | |
| 2 | |
| 2.54 | |
| Panel/Internal | |
| O-Ring/Silicon Rubber | |
| Glass/Nylon | |
| Glass/Nylon | |
| Straight | |
| -40 | |
| 80 | |
| 17.53 | |
| 17.53 | |
| 19.81 |
Quickly reset and disrupt processes by mechanically pressing this 30-100 push button switch from Grayhill. This device has a maximum current rating of 0.15 A @ 24VDC. It has a SPST configuration. This push switch has an operating temperature range of -40 °C to 80 °C. The 30-100 push switch has a solder lug termination style. This product is 17.53 mm long, 19.81 mm tall and 17.53 mm deep. The maximum DC voltage rating is 24 VDC.
