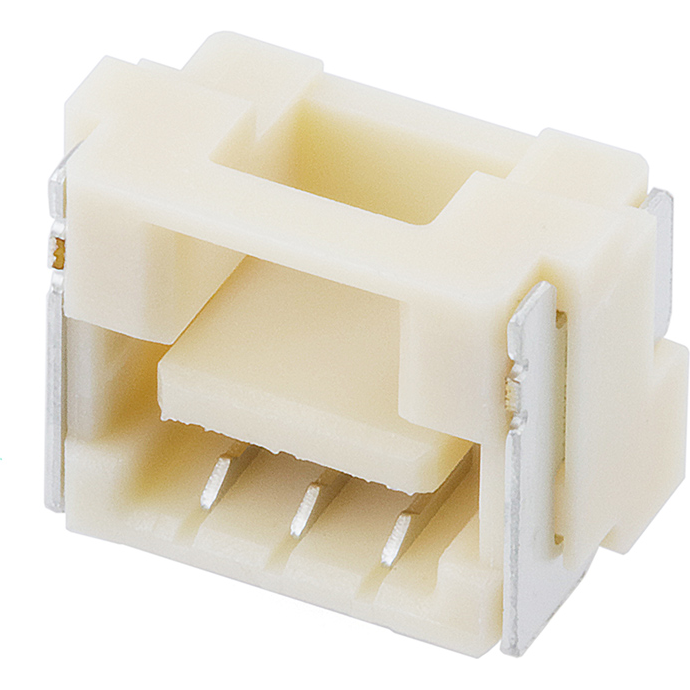

Molex5023820370Steckverbinderleisten und Leiterplattenbuchsen
Conn Wire to Board RCP 3 POS 1.25mm Solder ST SMD CLIK-Mate T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Wire to Board | |
| RCP | |
| 3 | |
| 1 | |
| Solder | |
| 1.25 | |
| Straight | |
| Center Slot | |
| 1/Contact | |
| 50VDC|50VAC | |
| 100 | |
| 20 | |
| -40 | |
| 105 | |
| 30 | |
| Tape and Reel | |
| 0.210801 | |
| 7.1 | |
| 5.45 | |
| 4.55 | |
| CLIK-Mate | |
| Surface Mount |
This wire to board 5023820370 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This RCP connector's 3 contacts that are made out of copper alloy and plated with tin over nickel. Its pitch is 1.25 mm. It has a receptacle type gender. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. 5023820370 is housed in natural high temperature thermoplastic. This connector has an operating temperature of -25 to 85 °C. This product is 7.1 mm long, 4.55 mm tall and 5.45 mm deep. It uses the solder termination method.
| EDA / CAD Models |
