Amphenol Communications Solutions61083-123402LFSteckverbinderleisten und Leiterplattenbuchsen

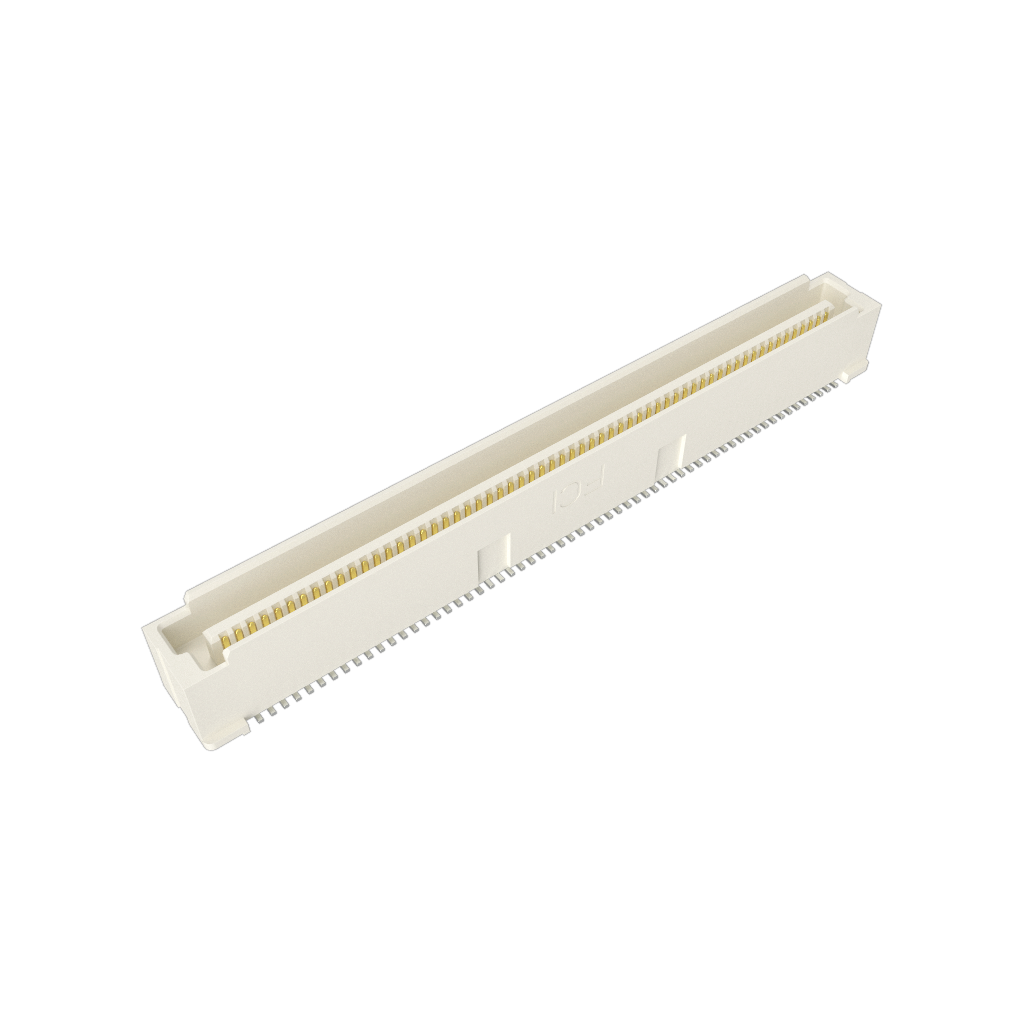

BergStak® 0.80mm Pitch, Mezzanine Connector, Vertical Header, Double Row, 120 Positions
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Fine Pitch Connector | |
| HDR | |
| 120 | |
| 2 | |
| Solder | |
| 0.8 | |
| Straight | |
| 0.8/Contact | |
| 100VAC | |
| 100 | |
| 50 | |
| -40 | |
| 125 | |
| 100 | |
| Tape and Reel | |
| 53.8 | |
| 6 | |
| 6.7 | |
| Bergstak® | |
| Surface Mount |
This fine pitch connector 61083-123402LF header connector from FCI reduces the possibility of accidentally shorting pins when a board is being used. This PL connector's 120 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.8 mm. It has a maximum voltage rating of 100 VAC. It has a plug type gender. This is a 2-row connector. This device has a maximum current rating of 0.8 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. 61083-123402LF is housed in liquid crystal polymer. This product is 53.8 mm long, 6.7 mm tall and 6 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 125 °C.
