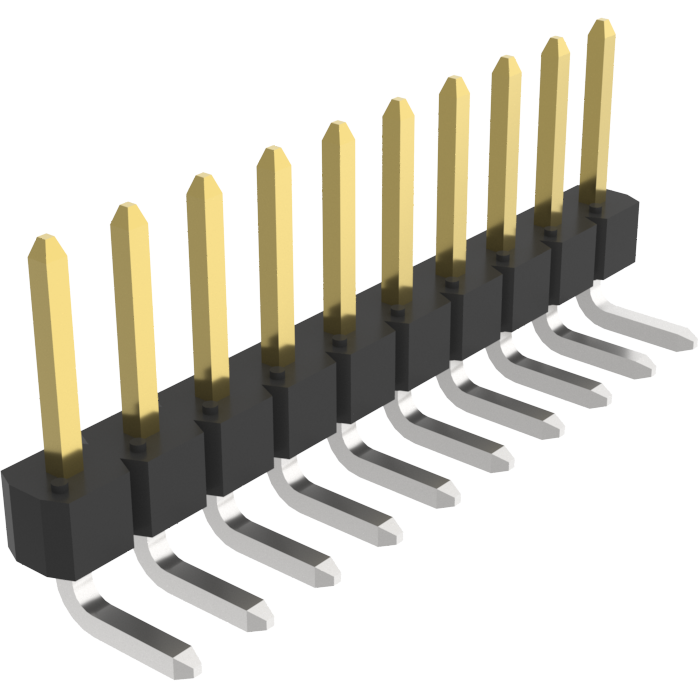

Amphenol Communications Solutions68016-410HLFSteckverbinderleisten und Leiterplattenbuchsen
BergStik®, Board to Board connector, Unshrouded Right Angle Header, Through Hole, Single Row, 10 Positions, 2.54 mm (0.100) Pitch
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Unshrouded Header | |
| HDR | |
| 10 | |
| 1 | |
| Solder | |
| 2.54 | |
| Right Angle | |
| 3/Contact | |
| 1500VAC | |
| 5000 | |
| -65 | |
| 125 | |
| Bulk | |
| 25.4 | |
| 10.22 | |
| 2.41 | |
| BergStik® | |
| 3.05 | |
| Through Hole |
Easily mount this unshrouded 68016-410HLF header connector from FCI onto your PCB project to support a variety of physical configuration options. This HDR connector's 10 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 2.54 mm. This is a 1-row connector. It has a maximum voltage rating of 1500 VAC. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. 68016-410HLF is housed in black polychlorinated terphenyl|liquid crystal polymer. This product is 25.4 mm long, 2.41 mm tall and 9.9 mm deep. This connector has an operating temperature of -65 to 125 °C. It uses the solder termination method.
| EDA / CAD Models |
