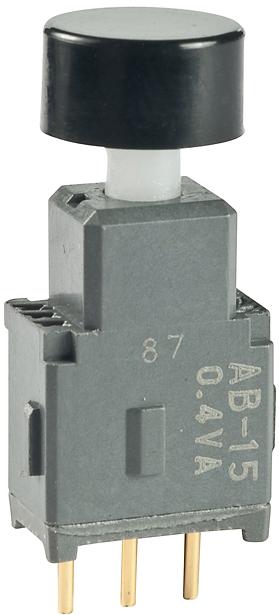

NKK SwitchesAB15AP-HADruckknopfschalter
Switch Push Button ON (ON) SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Thru-Hole PC Pins
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.31 | |
| Automotive | No |
| PPAP | No |
| Momentary | |
| SPDT | |
| Round Plunger | |
| ON (ON) | |
| Unthreaded | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 500 | |
| 50 | |
| 50000 | |
| 50000 | |
| Black | |
| 6.3 | |
| 1 | |
| Through Hole | |
| PC Pins | |
| 3 | |
| 3.1 | |
| 2.54 | |
| Body/Terminals/N/A | |
| Total/Epoxy/Process | |
| Straight | |
| -30 | |
| 85 | |
| 9.8 | |
| 4.5 | |
| 5.84 | |
| 8.6 | |
| 9.8 | |
| 5.84 | |
| 19.4 |
Never worry about turning off components or cutting off certain sections of a circuit with this AB15AP-HA push button switch from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The AB15AP-HA push switch has a PC pin termination style. This product is 9.8 mm long, 19.4 mm tall and 5.84 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
