Analog DevicesAD7763BSVZA/D-W
1-Channel Single ADC Delta-Sigma 625ksps 24-bit Serial 64-Pin TQFP EP Tray
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.30 | |
| Automotive | No |
| PPAP | No |
| General Purpose | |
| Delta-Sigma | |
| 24bit | |
| 1 | |
| 1 | |
| 625ksps | |
| Serial (3-Wire, SPI) | |
| Voltage | |
| Differential | |
| External | |
| Bipolar | |
| Analog and Digital | |
| ±2Vp-p/±3.25Vp-p | |
| Maximum Supply Current | 49(Typ) |
| 955.5 | |
| ±0.00076%FSR(Typ) | |
| 0.018%FSR(Typ) | |
| 112dB(Typ) | |
| 24 | |
| No | |
| No | |
| -40 | |
| 85 | |
| Tray | |
| Industrial | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1 mm |
| Verpackungsbreite | 10 mm |
| Verpackungslänge | 10 mm |
| Leiterplatte geändert | 64 |
| Standard-Verpackungsname | QFP |
| Lieferantenverpackung | TQFP EP |
| 64 | |
| Leitungsform | Gull-wing |
Use this specially engineered AD7763BSVZ ADC from Analog Devices to easily convert a time-varying analog signal to a digital number representation of the amplitude of that signal. This device is based on Delta-Sigma architecture. This device's digital interface is serial (3-wire, spi). It has a differential input signal. Its maximum power dissipation is 955.5 mW. This ADC has a resolution of 24bit. This ADC has an input voltage of ±2 Vp-p/±3.25Vp-p. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.

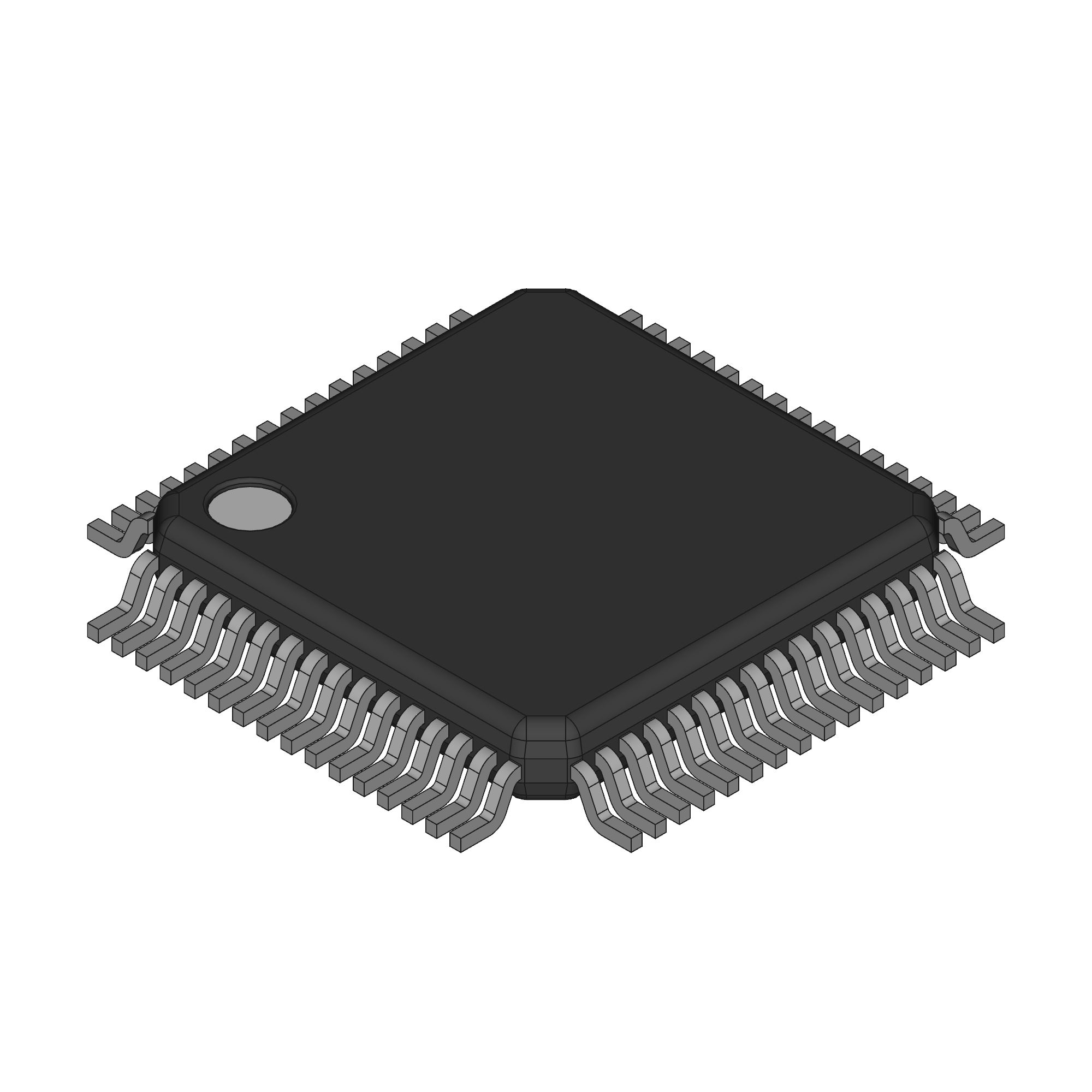

| EDA / CAD Models |
