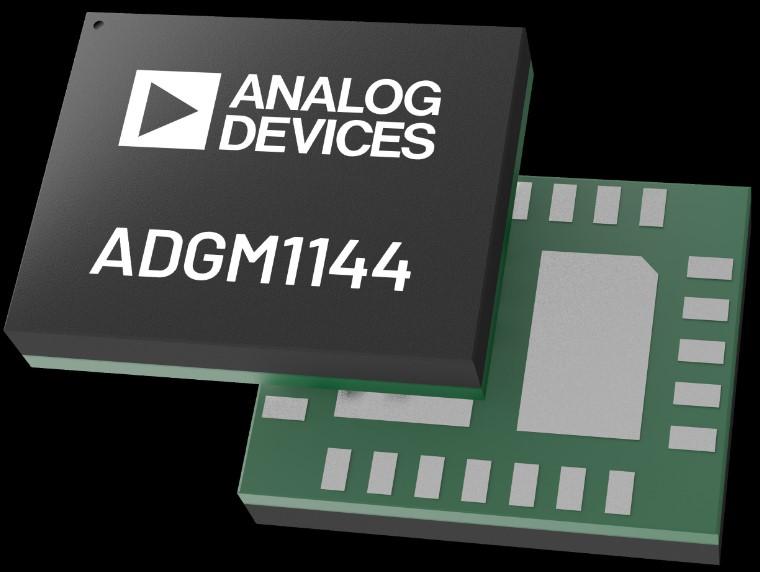

Analog DevicesADGM1144BCCZ-RL7HF-Schalter

ADGM1144: 0 Hz/DC to 18 GHz, SP4T, MEMS Switch

The ADGM1144 is a wideband, single-pole, four-throw (SP4T) switch, fabricated using Analog Devices, Inc., microelectromechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear, low insertion loss switch that is operational down to 0 Hz/DC, making it an ideal solution for a wide range of RF and precision equipment switching needs.

Key Features and Benefits

• High operational frequency range without performance trade-offs
• SP4T configuration provides a dense number of channel options
• Integrated passive components eliminate floating nodes on the switch and conserves valuable board space

Applications

• Instrumentation and Measurement: ATE load and probe boards, RF instrumentation
• Aerospace and Defense: High power mmW radios
• Communications: High performance RF frontends

Evaluation Board

The ADGM1144 can be evaluated with the EVAL-ADGM1144SDZ.
