| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.30 | |
| Automotive | No |
| PPAP | No |
| General Purpose | |
| Delta-Sigma | |
| 24bit | |
| 1 | |
| 4|2 | |
| 2ksps | |
| Serial (2-Wire, 3-Wire, 4-Wire, SPI) | |
| Voltage | |
| Single-Ended|Differential | |
| Internal|External|Supply | |
| Bipolar | |
| Single|Dual | |
| ±2.5V | |
| ±2.5 | |
| Maximum Supply Current | 0.89(Typ) |
| 2.1 | |
| ±15ppm of FSR | |
| ±0.1%FSR | |
| 24 | |
| No | |
| Yes | |
| -40 | |
| 125 | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 0.95(Max) mm |
| Verpackungsbreite | 3.6(Max) mm |
| Verpackungslänge | 3.6(Max) mm |
| Leiterplatte geändert | 16 |
| Standard-Verpackungsname | QFN |
| Lieferantenverpackung | VQFN EP |
| 16 | |
| Leitungsform | No Lead |

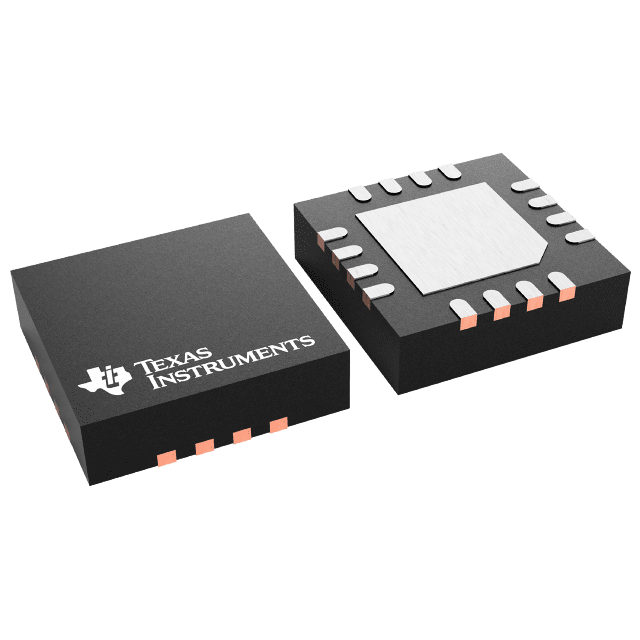

With this ADS1220IRVAT ADC from Texas Instruments you will have no problem converting real world physical signals into a sequence of digital data. This device is based on Delta-Sigma architecture. It has a single-ended and differential input signal. This device's digital interface is serial (5-wire, 4-wire, 3-wire, spi). This ADC has a resolution of 24bit. This ADC has an input voltage of ±2.5 V. Its typical dual supply voltage is ±2.5 V, with a minimum of ±2.3 V and maximum of ±2.75 V. This ADC has a temperature range of -40 °C to 125 °C.
| EDA / CAD Models |
