| Compliant | |
| 3A001a.2.a. | |
| Active | |
| 8542.39.00.30 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| General Purpose | |
| Delta-Sigma | |
| 24bit | |
| 8 | |
| 8 | |
| 144ksps | |
| Serial (SPI) | |
| Voltage | |
| Single-Ended|Differential | |
| External | |
| Bipolar | |
| Analog and Digital | |
| ±2V | |
| 530 | |
| 785 | |
| ±0.0012%FSR | |
| 0.5%FSR | |
| 111dB(Typ) | |
| 24 | |
| Yes | |
| Yes | |
| -55 | |
| 210 | |
| Tray | |
| Extended Industrial | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 2.29(Max) |
| Verpackungsbreite | 13.81 |
| Verpackungslänge | 13.81 |
| Leiterplatte geändert | 84 |
| Standard-Verpackungsname | FPAK |
| Lieferantenverpackung | CFPAK |
| 84 | |
| Leitungsform | Flat |

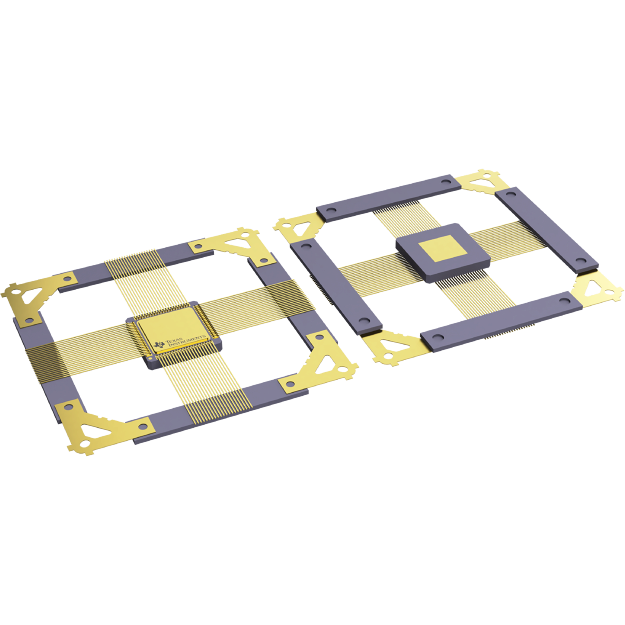

A must-have for data processing uses, this ADS1278SHFQ ADC made by Texas Instruments will translate analog electrical signals. This device is based on Delta-Sigma architecture. This device's digital interface is serial (spi). It has a single-ended and differential input signal. Its maximum power dissipation is 785 mW. This ADC has a resolution of 24bit. This ADC has an input voltage of ±2 V. This ADC has a minimum operating temperature of -55 °C and a maximum of 210 °C.
