| RoHS Not Applicable | |
| 3A002h. | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC überschreitet Schwellenwert | Yes |
| Automotive | No |
| PPAP | No |
| Evaluation Board | |
| ADS5400 | |
| ADC | |
| 12 | |
| 1G | |
| Win | |
| TIGAR | |
| SPI | |
| 6 to 36 | |
| Yes | |
| No |
This evaluation board ADS5400EVM data conversion development kit from Texas Instruments is perfect for breaking down the process of converting between real world physical signals and digital data that a computer can read.
Entwicklungskit-Beschreibung

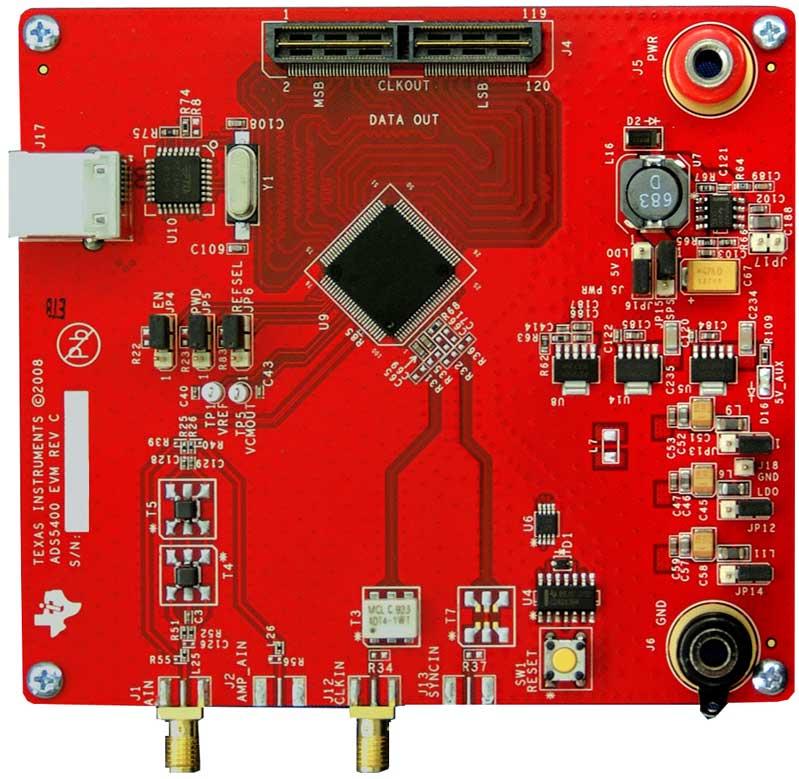

The ADS5400EVM is a circuit board which allows the designer to run an evaluation of Texas Instruments ADS5400 device, a 12 bit 1000 MSPS ADC. The output of this EVM is directly compatible to TI's TSW1200 LVDS ACD capture card, allowing for data capture and analysis of up to 64k sample points, enabling rapid device evaluation. Additionally with the supplied Logic analyzer breakout board, the ADC's LVDS output can be directly captured using either an Agilent E5405A or Tektronix P6980 touchless probe.
| EDA / CAD Models |
