Diodes IncorporatedAZ1117S-ADJTRE1Linear Regulators

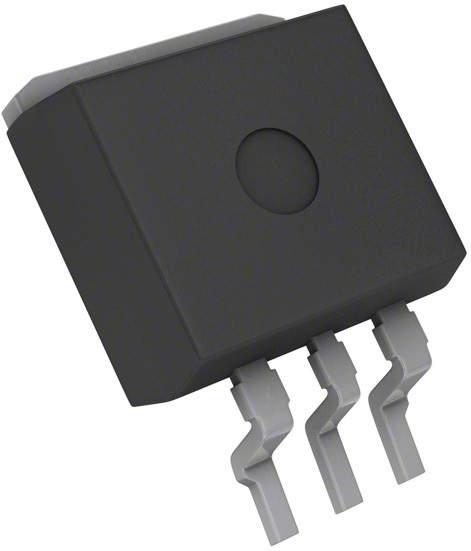

LDO Regulator Pos 1.25V to 12V 1A 4-Pin(3+Tab) TO-263 T/R
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8542.39.00.01 | |
| Automotive | No |
| PPAP | No |
| LDO | |
| 1 | |
| Positive | |
| ±1 | |
| Adjustable | |
| 1.25 to 12 | |
| 1 | |
| 15 | |
| 1.1@0.1A|1.18@0.5A|1.25@1A | |
| 1.27 | |
| 0.2% | |
| 0.4% | |
| 10 | |
| 60°C/W | |
| 10°C/W(Typ) | |
| Current Limit|Thermal Shutdown Protection | |
| -40 | |
| 125 | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 4.82(Max) |
| Verpackungsbreite | 9.65(Max) |
| Verpackungslänge | 10.29(Max) |
| Leiterplatte geändert | 3 |
| Tab | Tab |
| Standard-Verpackungsname | TO |
| Lieferantenverpackung | TO-263 |
| 4 | |
| Leitungsform | Gull-wing |
