Particle IncBRN402RF/Drahtlos-Entwicklungsplatinen und Kits

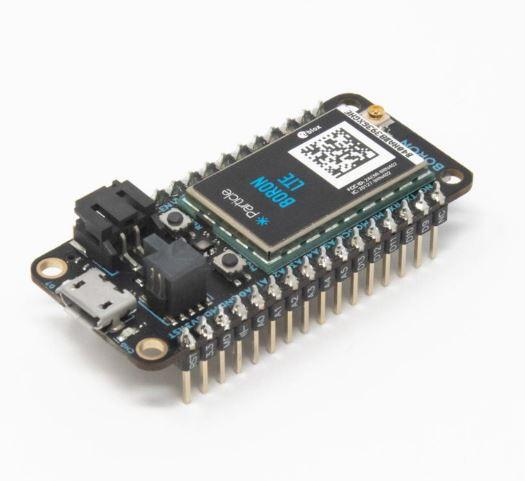

The Boron LTE is a powerful LTE CAT-M1 enabled development board that can act as a standalone cellular endpoint. It is based on the Nordic nRF52840 and has built-in battery charging circuitry so it’s easy to connect a Li-Po and deploy your local network.

u-blox SARA R410 LTE modem

- LTE CAT M1/ NB1 module with global hardware support (MVNO support for US only)

- 3GPP Release 13 LTE Cat M1

Nordic Semiconductor nRF52840 SoC

- ARM Cortex-M4F 32-bit processor @ 64MHz

- 1MB flash, 256KB RAM

- IEEE 802.15.4-2006: 250 Kbps

- Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps, 125 Kbps

- Supports DSP instructions, HW accelerated Floating Point Unit (FPU) calculations

- ARM TrustZone CryptoCell-310 Cryptographic and security module

- Up to +8 dBm TX power (down to -20 dBm in 4 dB steps)

- NFC-A tag



General Boron specifications:

On-board additional 2MB SPI flash

20 mixed signal GPIO (6 x Analog, 8 x PWM), UART, I2C, SPI

Micro USB 2.0 full speed (12 Mbps)

Integrated Li-Po charging and battery connector

JTAG (SWD) Connector

RGB status LED

Reset and Mode buttons

Dual SIM support: Nano 4FF (unpopulated) and MFF2

U.FL connector for external antenna

Meets the Feather specification in dimensions and pinout

FCC and PTCRB certified

RoHS compliant (lead-free)

Download the Boron Quickstart Guide
