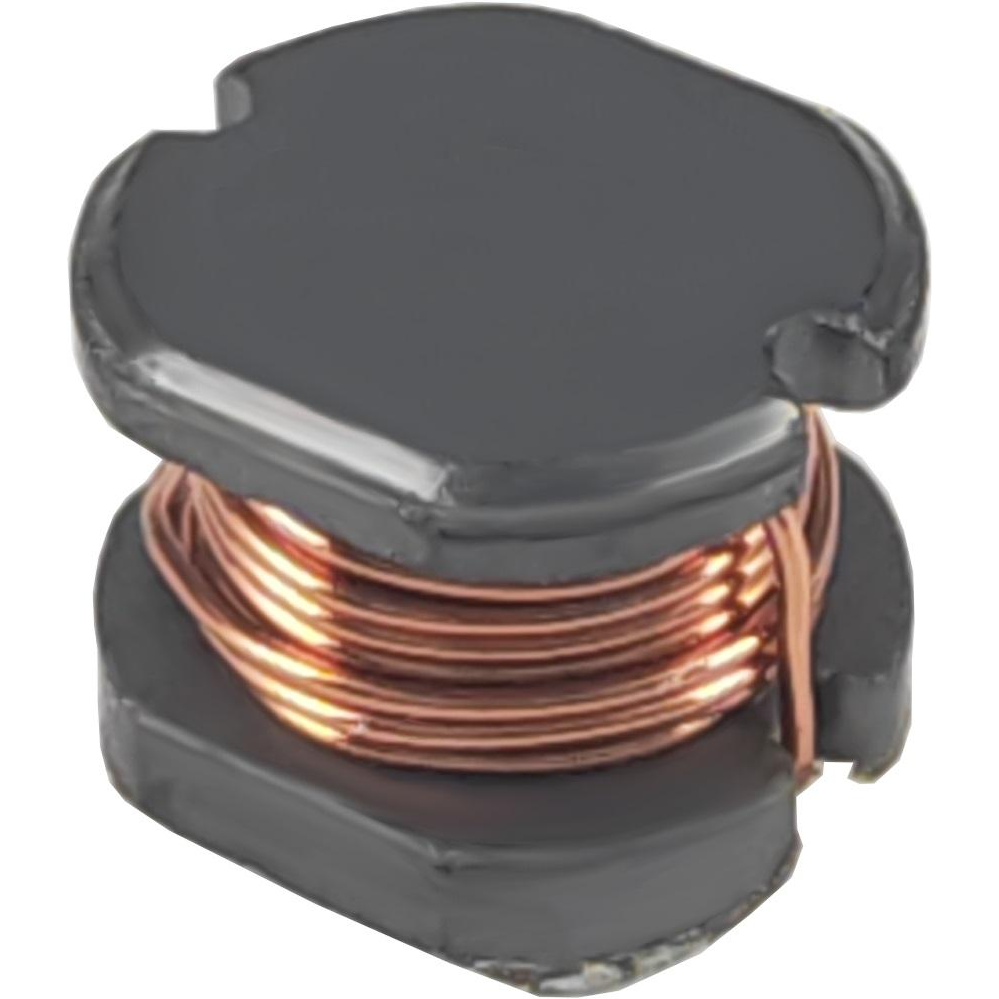

SumidaCD54NP-330LCInduktionsspule, Oberflächenmontage
Inductor Power Unshielded Drum Core 33uH 15% 2.52MHz Ferrite 0.88A 0.23Ohm DCR T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power | |
| Drum Core | |
| Unshielded | |
| Ferrite | |
| 33u | |
| 15% | |
| 2.52M | |
| 0.88 | |
| 0.88 | |
| 0.23 | |
| 16.3M(Typ) | |
| 2 | |
| -40 | |
| 100 | |
| Tape and Reel | |
| 6.1 | |
| Surface Mount | |
| 5.5 | |
| 4.85 |
This power CD54NP-330LC surface mount inductor from Sumida Corporation is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 33u H. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 16.3M(Typ) Hz. This product is 6.1 mm long, 4.85 mm tall and 5.5 mm deep. It has a tolerance of 15%. This device is made with drum core technology. This SMD inductor has a maximum DC current of 880m A with a maximum resistance of 230m Ohm.
