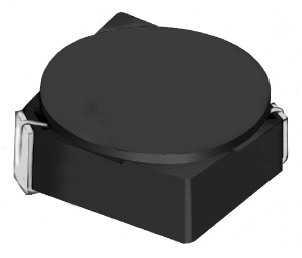

SumidaCDRH3D16NP-6R8NCInduktionsspule, Oberflächenmontage
Inductor Power Shielded Drum Core 6.8uH 30% 100KHz Ferrite 0.73A 0.17Ohm DCR 1515 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power | |
| Drum Core | |
| Shielded | |
| Ferrite | |
| 6.8u | |
| 30% | |
| 100K | |
| 0.73 | |
| 0.73 | |
| 0.17 | |
| 2 | |
| 1515 | |
| -40 | |
| 100 | |
| Tape and Reel | |
| 4 | |
| Surface Mount | |
| 4 | |
| 1.8 |
This power CDRH3D16NP-6R8NC surface mount inductor from Sumida Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 730m A with a maximum resistance of 170m Ohm. Its test frequency is 100K Hz. It has an inductance of 6.8u H. This product is 4 mm long, 1.8 mm tall and 4 mm deep. This device is made with drum core technology.
