| Compliant with Exemption | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC überschreitet Schwellenwert | Yes |
| Automotive | No |
| PPAP | No |
| Power MOSFET | |
| Si | |
| Single Quad Drain Triple Source | |
| Enhancement | |
| N | |
| 1 | |
| 60 | |
| ±20 | |
| 2.3 | |
| 50 | |
| 100 | |
| 1 | |
| 9.8@10V | |
| 8.5@4.5V|17@10V | |
| 17 | |
| 3.5 | |
| 1360@30V | |
| 3100 | |
| 2 | |
| 5.5 | |
| 15 | |
| 5.2 | |
| -55 | |
| 150 | |
| Tape and Reel | |
| 1.9 | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1 |
| Verpackungsbreite | 5.75 |
| Verpackungslänge | 4.9 |
| Leiterplatte geändert | 8 |
| Standard-Verpackungsname | SON |
| Lieferantenverpackung | VSONP EP |
| 8 |

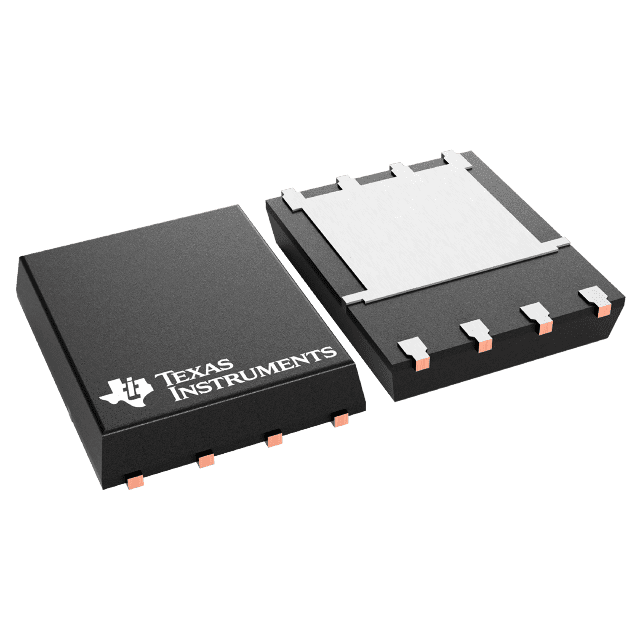

In addition to amplifying electronic signals, you'll be able to switch between various lines with the CSD18534Q5A power MOSFET, developed by Texas Instruments. Its maximum power dissipation is 3100 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with nexfet technology. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
