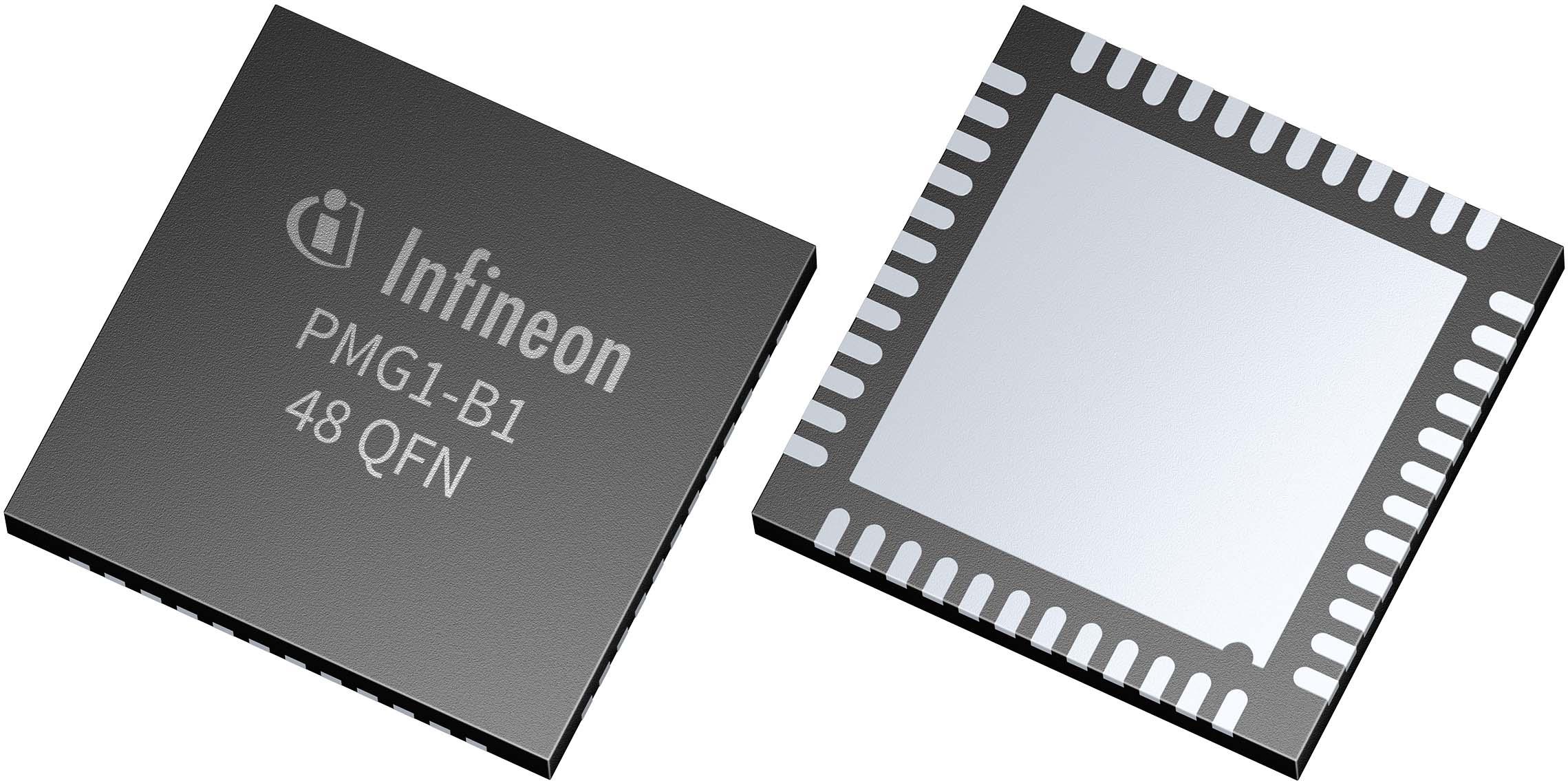

EZ-PD™ PMG1-B1: industry´s first high-voltage USB-C power delivery microcontroller with integrated buck-boost battery charger

EZ-PD™ PMG1-B1 is a highly integrated single-port USB Type-C Power Delivery (PD) Microcontroller with integrated buck-boost battery charge controller. While complying with USB PD 3.1 specifications, EZ-PD™ PMG1-B1 integrates a programmable MCU with Arm® Cortex®-M0/M0+, 128 KB Flash and 16 KB SRAM for custom features implementation, gate drivers, and hardware-controlled protection features. EZ-PD™ PMG1-B1 supports a wide input voltage range (4 to 24 V with 40 V tolerance) and programmable switching frequency (150 to 600 kHz) in an integrated PD solution.

Features

• •  USB-C support and USB PD support
• •  Programmable MCU with Arm® Cortex® M0, 128 KB Flash and 16 KB SRAM
• •  Integrated buck-boost controller with 5.5 V to 24 V input and 3.3 V to 21.5 V output voltage range
• •  21 GPIOs that can operate from 1.71 V to 5.5 V
• •  Termination resistors: Rp and Rd for CYPM1115, and Rp Rd and Rd-db for CYPM1116
• •  High-voltage protection features such as OVP UVP OCP

Benefits

• •  Optimized area and BOM thanks to the integrated single-chip solution
• •  Simple customization via ModusToolbox™ and EZ-PD™ PMG1 SDK
• •  Easy integration into your application

Target Applications

• •  Power tools
• •  Portable/cordless battery-powered electronics
• •  Smart home appliances

Competitive Advantage

• •  High level of system integration
• •  USB PD + MCU + buck-boost battery charger on a single chip
• •  ModusToolbox™ and EZ-PD™ PMG1 SDK for an easy customization
