Texas InstrumentsDAPSIGCNDBRDBPEVMIntegrierte Verstärkerschaltung, Entwicklungsplatinen und -kits

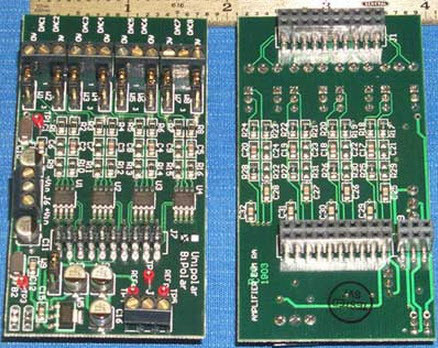

The DAPSigCndBrdBPEVM can be used with DAPs, Data Acquisition Products, 5-6K Interface and C2000 Interface boards. This signal conditioning board, provides up to eight single ended or four differential conditioning channels for use with a wide selection of data converter evaluation boards. The DAPSigCndBrdBPEVM boards four dual supply OPA2132 operational amplifiers operate at +/- 15 volts. The board contains jumpers and additional component locations that provide a variety of configuration options. While the Signal Conditioning Board can serve as a stand-alone amplifier for many applications, its primary purpose is to be used as an interface for data acquisition evaluation boards.
