Analog DevicesDC2973AEnergiemanagement, Entwicklungsplatinen und -kits

LTC3337: Nanopower Primary Battery SoH Monitor with Precision Coulomb Counter

The LTC3337 is battery-friendly by presenting the battery with a load profile that allows it to deliver its maximum capacity, independent of the actual load.

Key Features and Benefits

• •  Ultralow quiescent current of 100 nA gives longer battery run times, helpful in remote locations where access is minimal or difficult
• •  Infinite dynamic range is accurate across all load profiles
• •  Allows battery to run at maximum capacity by presenting the battery an optimized load profile

Applications

• •  General purpose: low power primary battery-powered systems (for example, 1× LiSOCl2, 2–3× alkaline)
• •  Consumer: electronic door locks
• •  Industrial automation: remote industrial sensors (meters, alarms, etc.), asset trackers

Evaluation Board

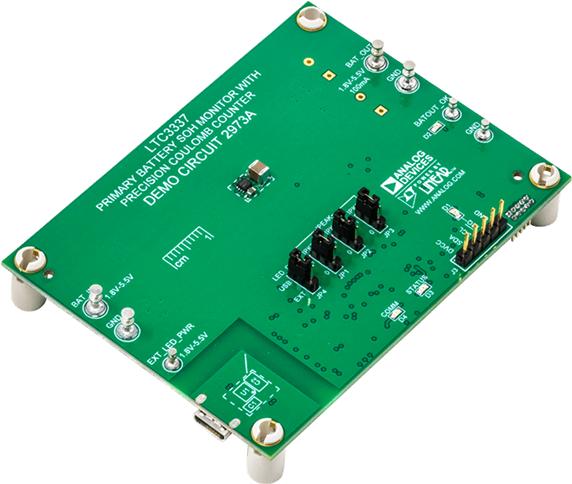

The LTC3337 can be evaluated with the DC2973A.

Block Diagrams and Tables

Related Products

LTC3337ERC#TRMPBF
LTC3337ERC#TRPBF
LTC3337ECBZ-R7
LTC3337ECB#TRPBF
