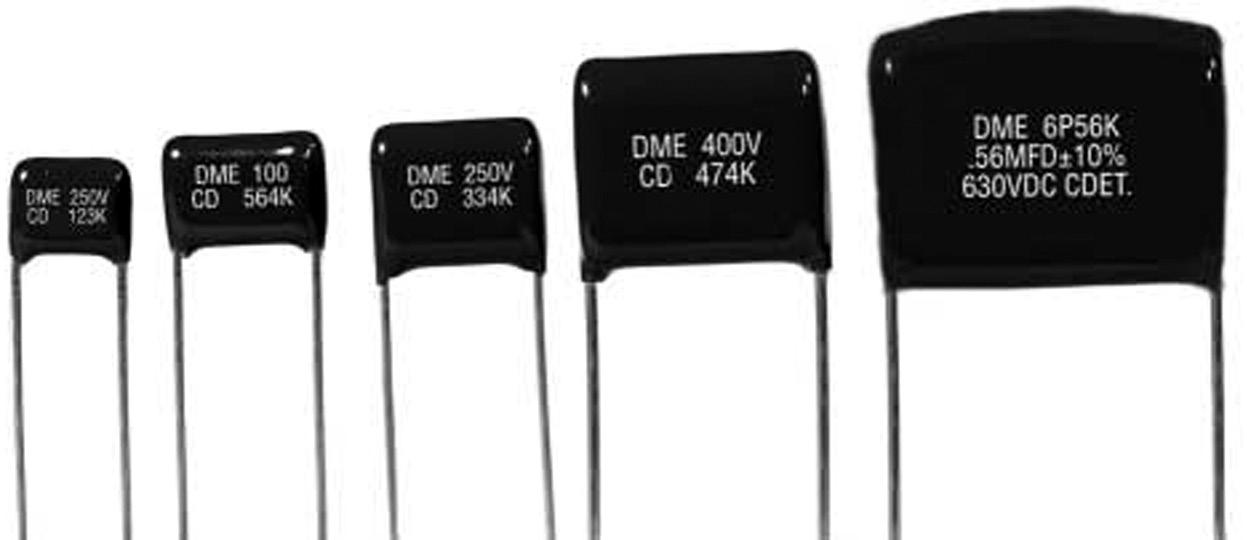

Illinois CapacitorDME2P22K-FKondensator, Kunststofffilm
Cap Film 0.22uF 250V PET 10%( 12.5 X 6 X 10.5mm) Radial 10mm 125°C
| Compliant | |
| EAR99 | |
| Active | |
| 8532.25.00.70 | |
| Automotive | No |
| PPAP | No |
| DC Capacitor | |
| 0.22uF | |
| 10% | |
| 250VDC|160VAC | |
| PET | |
| Mini Dipped | |
| Wound | |
| Through Hole | |
| Radial | |
| 10 | |
| 12.5 X 6 X 10.5 | |
| Straight | |
| -55 | |
| 125 | |
| 12.5(Max) | |
| 6(Max) | |
| 10.5(Max) | |
| 0.6 | |
| 25 | |
| 12(Max) |
This DME2P22K-F film capacitor from Cornell Dubilier is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 250 VDC|160VAC. This part has a maximum operating temperature of 125 °C. This part has a lead diameter of 0.6 mm and a pitch of 10 mm. Its capacitance value is 0.22uF. The DME2P22K-F part has a radial termination style. It has a tolerance of 10%. This product is 12.5(Max) mm long, 10.5(Max) mm tall and 6(Max) mm deep.
| EDA / CAD Models |
