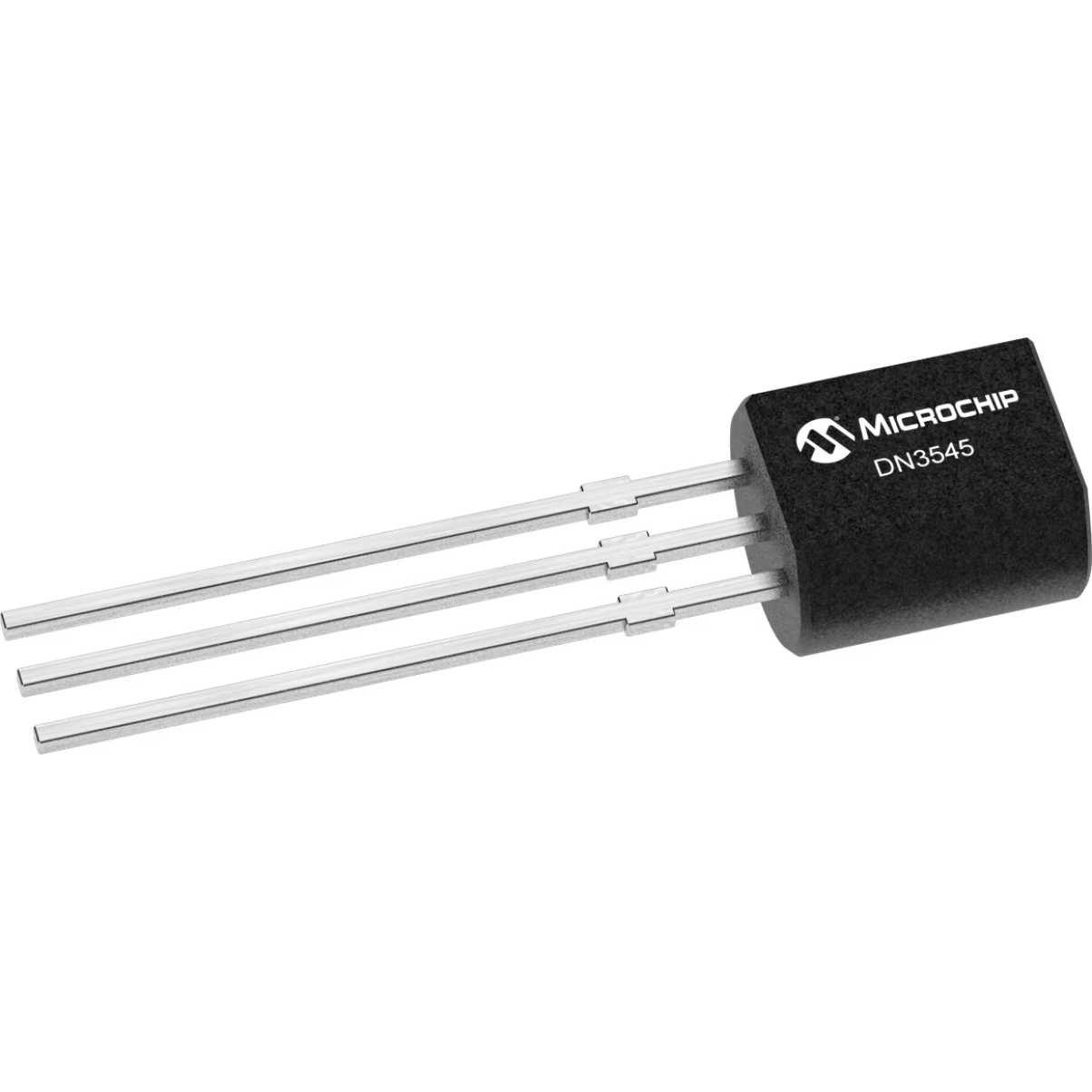

Microchip TechnologyDN3545N3-GMOSFETs
Trans MOSFET N-CH Si 450V 0.136A 3-Pin TO-92 Bag
| Compliant | |
| EAR99 | |
| Active | |
| 8541.29.00.95 | |
| Automotive | No |
| PPAP | No |
| Power MOSFET | |
| Si | |
| Single | |
| Depletion | |
| N | |
| 1 | |
| 450 | |
| ±20 | |
| 0.136 | |
| 100 | |
| 200000(Min) | |
| 20000@0V | |
| 360(Max)@25V | |
| 15(Max)@25V | |
| 40(Max) | |
| 740 | |
| 40(Max) | |
| 30(Max) | |
| 30(Max) | |
| 20(Max) | |
| -55 | |
| 150 | |
| Bag | |
| 20 | |
| 1.6 | |
| 1.1 | |
| 800 | |
| 1.8 | |
| Befestigung | Through Hole |
| Verpackungshöhe | 5.33(Max) |
| Verpackungsbreite | 4.19(Max) |
| Verpackungslänge | 5.21(Max) |
| Leiterplatte geändert | 3 |
| Standard-Verpackungsname | TO |
| Lieferantenverpackung | TO-92 |
| 3 | |
| Leitungsform | Formed |
Do you require the advantages of traditional transistors coupled with the switching benefits of power MOSFETs? Microchip Technology's DN3545N3-G power MOSFET can provide a solution. Its maximum power dissipation is 740 mW. This device is made with dmos technology. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This N channel MOSFET transistor operates in depletion mode.
| EDA / CAD Models |
