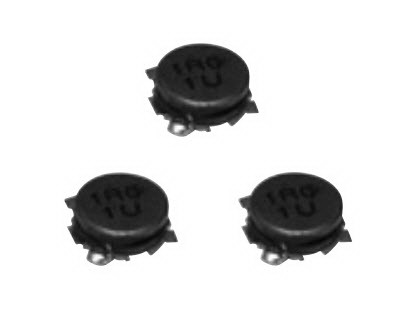

PanasonicELL-6PGR08NInduktionsspule, Oberflächenmontage
Power Choke Shielded Wirewound 0.8uH 30% 100KHz 2.8A 0.024Ohm DCR 2424 T/R
| Compliant | |
| EAR99 | |
| Obsolete | |
| ELL-6PGR08N | |
| Automotive | No |
| PPAP | No |
| Power Choke | |
| Wirewound | |
| Shielded | |
| 0.8u | |
| 30% | |
| 100K | |
| 2.8 | |
| 3.8 | |
| 0.024(Typ) | |
| 2 | |
| 2424 | |
| Tape and Reel | |
| 6.3 | |
| Surface Mount | |
| 6.3 | |
| 2 |
An ideal space-saving electronic component is this power choke ELL-6PGR08N surface mount inductor from Panasonic. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 800n H. Its test frequency is 100K Hz. This product is 6.3 mm long, 2 mm tall and 6.3 mm deep. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 2.8 A with a maximum resistance of 24m(Typ) Ohm.
| EDA / CAD Models |
