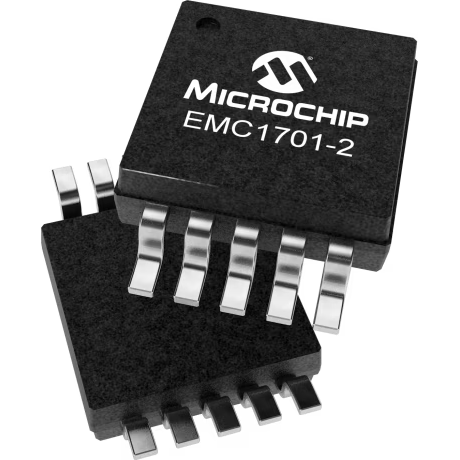

Microchip TechnologyEMC1701-2-AIZL-TRStromsensoren
Current Sensor 3.3V/5V/9V/12V/15V/18V 10-Pin MSOP T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| IC | |
| 1 | |
| 0.4 | |
| 3 | |
| 3.3|5|9|12|15|18 | |
| 24 | |
| -40 | |
| 85 | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 0.92 mm |
| Verpackungsbreite | 3 mm |
| Verpackungslänge | 3 mm |
| Leiterplatte geändert | 10 |
| Standard-Verpackungsname | SO |
| Lieferantenverpackung | MSOP |
| 10 | |
| Leitungsform | Gull-wing |
Because it does not have a direct electrical connection to the current being monitored, this EMC1701-2-AIZL-TR current sensor from Microchip Technology allows for galvanic isolation to the measurement circuit. It has an operating frequency of 400(Max) kHz. This device has a minimum operating supply voltage of 3 V and a maximum of 24 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.
