Analog DevicesEVAL-AD5543SDZDatenkonvertierung, Entwicklungsplatinen und -kits
AD5543 DAC Evaluation Board Graphic User Interface IDE
| Compliant | |
| EAR99 | |
| Active | |
| 8473.30.11.80 | |
| Automotive | No |
| PPAP | No |
| Evaluation Board | |
| AD5543 | |
| DAC | |
| 16 | |
| Graphic User Interface | |
| No | |
| No |
Do you need a set of electronic tools to break down the process of converting data into several steps? Then this evaluation board EVAL-AD5543SDZ data conversion development kit from Analog Devices is perfect for you!
Entwicklungskit-Beschreibung

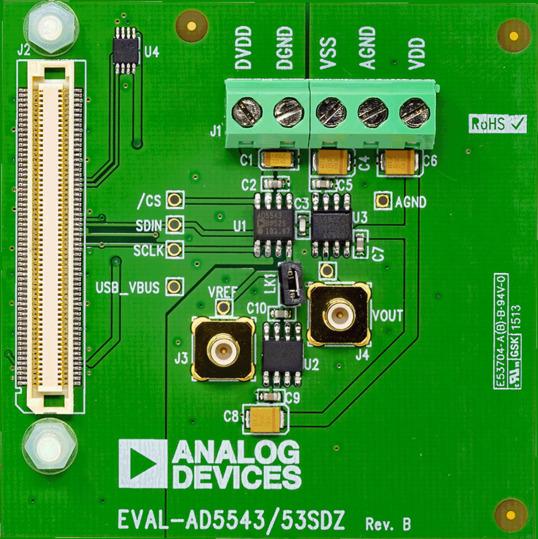

The AD5543 is a precision, 16-bit, low power, current output, small form factor, digital-to-analog converter (DAC). It is designed to operate from a single 5 V supply with a ±10 V multiplying reference. The EVAL-AD5543/53SDZ board is used in conjunction with the EVAL-SDP-CB1Z system development platform (SDP) board available from Analog Devices, Inc., which is purchased separately from the evaluation board. The USB-to-SPI communication to the AD5543 is completed using this Blackfin-based development board. The software offers a waveform generator.
| EDA / CAD Models |
