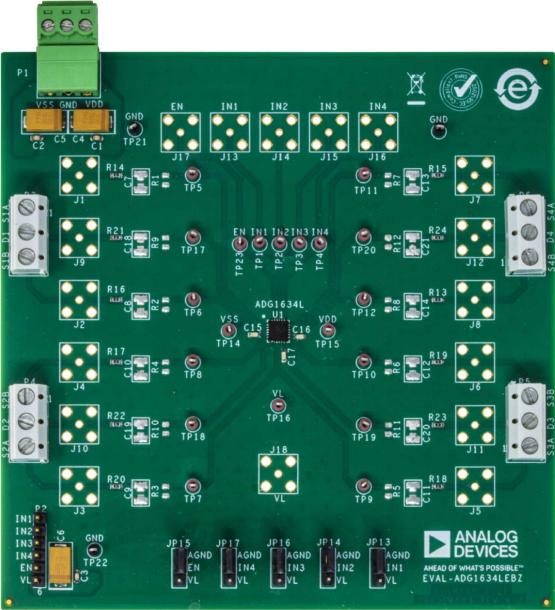

Analog DevicesEVAL-ADG1634LEBZEntwicklungssätze und Werkzeuge

ADG1634L: 4.7 Ω RON, Quad SPDT Switch with 1.2V and 1.8V JEDEC Logic Compliance

The ADG1634L is a monolithic industrial CMOS (iCMOS) analog switch comprising four independently selectable single-pole, double-throw (SPDT) switches, respectively. All channels of the ADG1634L exhibit break-before-make switching action that prevents momentary shorting when switching channels. The ultralow on resistance and on-resistance flatness of the switch makes it an ideal solution for data acquisition and gain switching applications, where low distortion is critical

Key Features and Benefits:

• •  JEDEC standard compliant logic interface eliminates the need for level translators
• •  Up to 360 mA continuous current can be used to replace relays
• •  Small 4 mm x 4mm LFCSP package size

Applications:

• •  Communications: GaN and LDMOS power amplifiersr
• •  Instrumentation and Measurement
• •  Industrial Automation
• •  General Purpose

Block Diagrams and Tables:
