Analog DevicesEVAL-CN0255-SDPZEntwicklungssätze und Werkzeuge

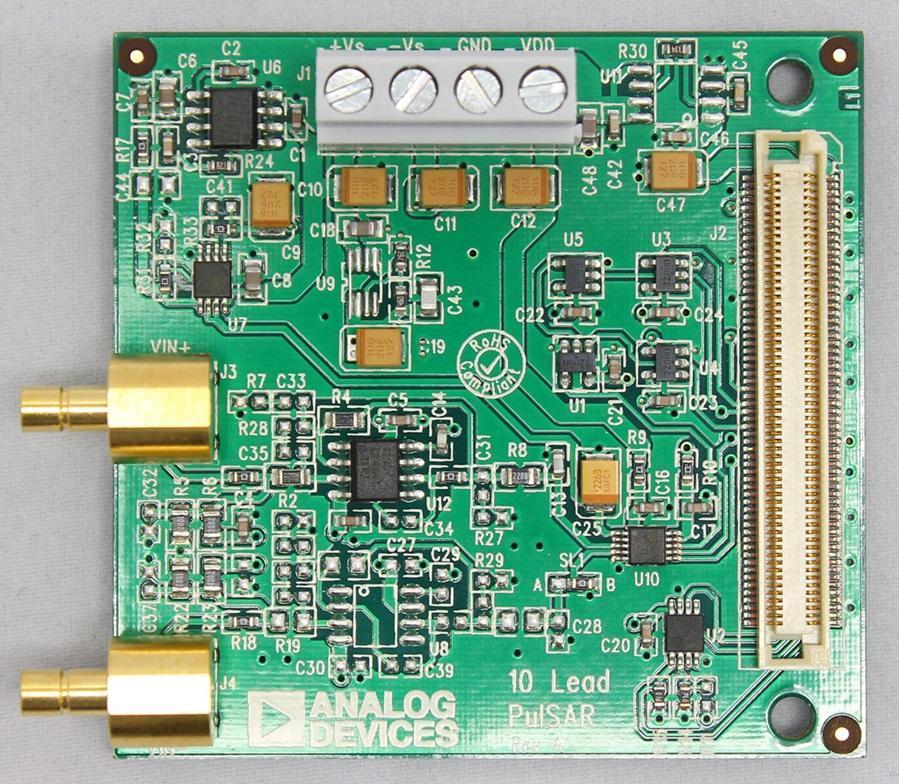

EVAL-CN0255-SDPZ is A Complete Single-Supply, 16-Bit, 100 kSPS PulSAR ADC System Dissipates 8 mW. The heart of this circuit is the AD7988-1, a 16-bit, 100 kSPS successive approximation, ADC that operates from a single VDD power supply. It contains a low power, high speed, 16-bit sampling ADC and a versatile serial port interface (SPI). On the CNV rising edge, it samples an analog input, IN+, between 0 V to REF with respect to the ground sense pin, IN−. The reference voltage, REF, is applied externally and can be set independent of the supply voltage, VDD.
