EVAL-CN0313-SDPZ is CN0313 Circuit EMC Compliant RS-485 Transceiver Protection Circuits Evaluation Board. The circuit offer proven protection for RS-485 interfaces using the ADM3485E to the ESD, EFT, and surge levels often encountered in harsh environments.

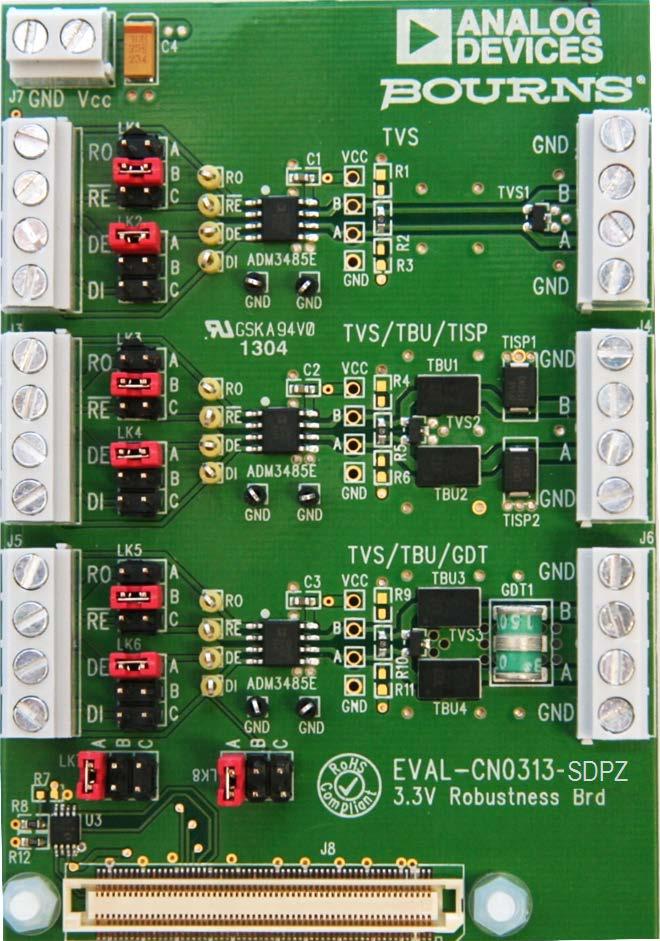

There are three ADM3485E devices on the board, one for each protection scheme. Each protection scheme provides ESD and EFT protection as described and increasing levels of surge protection.
