L6228Q Motion Motor Control Reference Design Board
| Compliant | |
| EAR99 | |
| Active | |
| 8543.70.98.60 | |
| Automotive | No |
| PPAP | No |
| Reference Design Board | |
| Motion Motor Control | |
| 1400 | |
| 8VDC to 52VDC | |
| 100 | |
| L6228Q | |
| -25 | |
| 125 | |
| 32 | |
| 27 |
Control your circuit's power levels using the EVAL6228QR power management development kit from STMicroelectronics. Its output produces a current of 1400 mA. It has a switching frequency of 100 KHz. This part has a minimum operating temperature of -25 °C and a maximum of 125 °C. This product is 32 mm long.
Entwicklungskit-Beschreibung

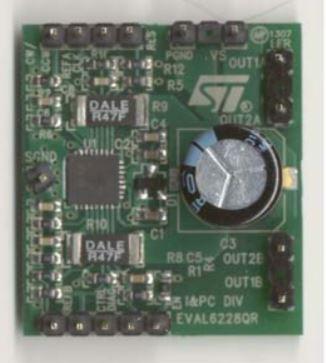

EVAL6228QR is Dual full bridge with PWM current control and translator for stepper reference design board
The L6228Q is a DMOS fully integrated stepper motor driver, realized in BCD multipower technology.
The L6228Q includes the circuitry to drive a two-phase bipolar stepper motor: a dual DMOS full-bridge, the constant off-time, the PWM current controller performing the chopping regulation and the phase sequence generator, which generates the stepping sequence. The device features a non-dissipative overcurrent protection on the high-side power MOSFETs and thermal shutdown.
