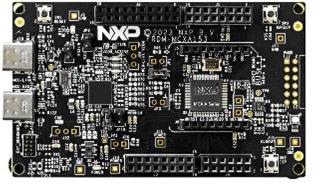

NXP SemiconductorsFRDM-MCXA153Eingebettete Systementwicklungsboards und -kits

FRDM-MCXA153 are compact and scalable development boards for rapid prototyping of MCX A14 and A15 MCUs. They offer industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like NXP’s Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Features

• Microcontroller
• •  MCXA15x Arm® Cortex®-M33 core, Up to 128KB flash with Up to 32 kB RAM with 8kB ECC LPLUART, LPSPI, LPI2C, FS USB, DMA and LDO

• Connectivity
• •  FS USB ports with USB Type-C connector for host or device functionality
• •  HS USB Type-C connectors
• •  SPI/I²C/UART connector (PMOD/mikroBUS, DNP)
• •  Wi-Fi connector (PMOD/mikroBUS, DNP)

• Debug
• •  On-board MCU-Link debugger with CMSIS-DAP
• •  JTAG/SWD connector

• Sensor
• •  P3T1755DPJ I3C/I²C Temp Sensor

• Expansion Options
• •  Arduino® Header
• •  FRDM Header
• •  Pmod™ *DNP
• •  mikroBUS™

• User Interface
• •  RGB user LED, plus Reset, ISP, wake up buttons

FRDM Development Board for MCX A14x/A15x MCUs
