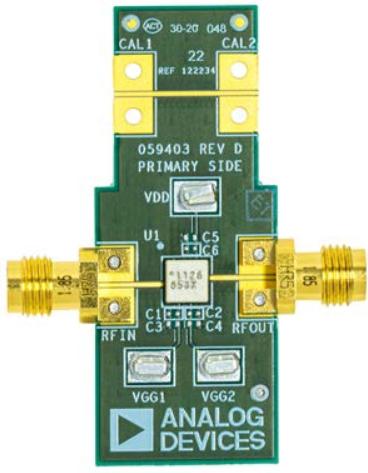

HMC1126 RF Amplifier Evaluation Board
HMC1126: GaAs, pHEMT, Low Noise Amplifier, 400 MHz to 52 GHz
The HMC1126-EVAL is a gallium arsenide (GaAs), pseudomorphic high electron mobility transfer (pHEMT), monolithic microwave integrated circuit (MMIC), distributed power amplifier that operates from 0.4 GHz to 52 GHz.
The HMC1126-EVAL amplifier inputs/outputs are internally matched to 50Ω facilitating integration into multichip modules (MCMs). All data is taken with the chip connected via two 0.025mm (1 mil) wire bonds of minimal length 0.31mm (12 mils).
Key Features and Benefits:
- • Wideband up to 52 GHz
- • 12 dB gain
- • 3.5 dB noise figure
- • 28.5 dBm output IP3, 10 dB higher than a typical amplifier
Applications:
- • Aerospace and Defense: electronic warfare
- • Instrumentation: test equipment
- • Communications: 5G
- • General Purpose
Block Diagrams and Tables:
| Compliant | |
| 3A001.b.4.e.1 | |
| Active | |
| HMC1126-EVALZ | |
| Automotive | No |
| PPAP | No |
| Evaluation Board | |
| HMC1126 | |
| RF Amplifier | |
| 52000(Max) | |
| 5 | |
| -40 | |
| 85 |
| EDA / CAD Models |
