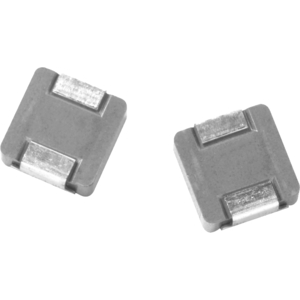

VishayIHLP2525BDER8R2M01Induktionsspule, Oberflächenmontage
Power Choke Shielded Wirewound 8.2uH 20% 100KHz Powdered Iron 3A 0.106Ohm DCR 2525 T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Power Choke | |
| Wirewound | |
| Shielded | |
| Powdered Iron | |
| 8.2u | |
| 20 | |
| 20% | |
| 100K | |
| 3(Typ) | |
| 8(Typ) | |
| 0.106 | |
| 2 | |
| 2525 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| 7.24 | |
| Surface Mount | |
| 6.72 | |
| 2.4 |
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power IHLP2525BDER8R2M01 surface mount inductor from Vishay to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 7.24 mm long, 2.4 mm tall and 6.72 mm deep. This SMD inductor has a maximum DC current of 3(Typ) A with a maximum resistance of 106m Ohm. It has an inductance of 8.2u H. Its test frequency is 100K Hz. It has a tolerance of 20%. This device is made with wirewound technology.
| EDA / CAD Models |
