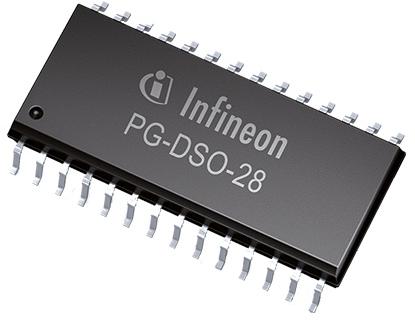

Infineon Technologies AGIRS23364DSPBFGate- und Leistungstreibern
Driver 600V 6-OUT High Side/Low Side 3-Phase Brdg Non-Inv 28-Pin SOIC W Tube
| Compliant | |
| EAR99 | |
| Obsolete | |
| IRS23364DSPBF | |
| Automotive | No |
| PPAP | No |
| High Side|Low Side | |
| Non-Inverting | |
| 3-Phase Bridge | |
| 6 | |
| Dependent | |
| IGBT|MOSFET | |
| 6 | |
| 190 | |
| 75 | |
| 750 | |
| CMOS|TTL | |
| 11.5 | |
| 20 | |
| 0.8(Max) | |
| 2.5(Min) | |
| 600 | |
| 1600 | |
| -40 | |
| 125 | |
| Current Limit|Thermal Shutdown Protection|Undervoltage Lockout | |
| Tube | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 2.35(Max) mm |
| Verpackungsbreite | 7.6(Max) mm |
| Verpackungslänge | 18.1(Max) mm |
| Leiterplatte geändert | 28 |
| Standard-Verpackungsname | SO |
| Lieferantenverpackung | SOIC W |
| 28 | |
| Leitungsform | Gull-wing |
| EDA / CAD Models |
