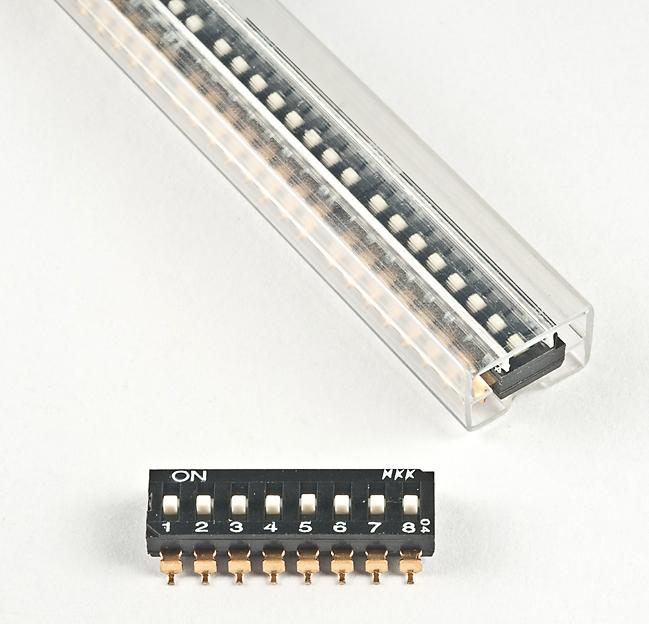

NKK SwitchesJS0208AP4-SDIP-Schalter
Switch DIP OFF ON SPST 8 Raised Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| Ultra-Miniature DIP Switch | |
| Raised Slide | |
| SPST | |
| OFF ON | |
| 8 | |
| 0.025@24VDC | |
| 100 | |
| 24 | |
| 500VAC | |
| 100 | |
| 50 | |
| 2000 | |
| 2000 | |
| 0.6 | |
| No | |
| Surface Mount | |
| Gull Wing | |
| 2.54 | |
| 16 | |
| 17.78 | |
| 8.9 | |
| Straight | |
| -20 | |
| 70 | |
| Tube | |
| 21.26 | |
| 6.2 | |
| 3 | |
| 21.26 | |
| 9.8 | |
| 4.3 |
Add push button-type user control to your printed circuit board using the JS0208AP4-S dual in-line package switch from NKK Switches. It has a SPST configuration. This device has a maximum current rating of 0.025 A @ 24VDC. This DIP switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The JS0208AP4-S DIP switch has a gull wing termination style. This product's terminal pitch is 2.54 mm. This product is 21.26 mm long, 4.3 mm tall and 9.8 mm deep. The maximum DC voltage rating is 24 VDC.
