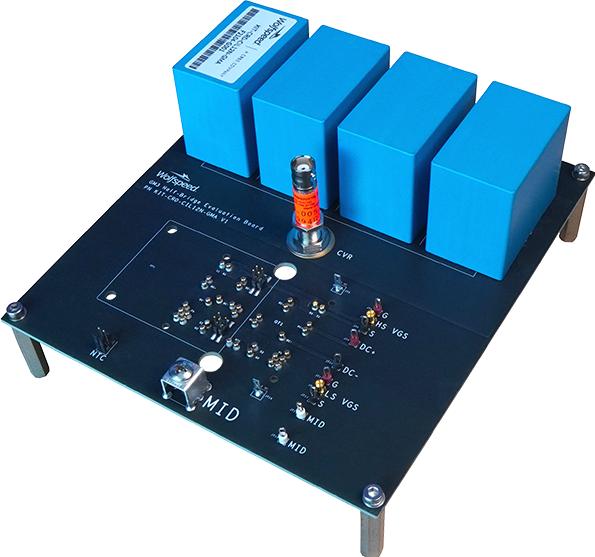

Wolfspeed WolfPACK™ KIT-CRD-CIL12N-GMA Half-Bridge Evaluation Board

Wolfspeed’s KIT-CRD-CIL12N-GMA is a dynamic characterization tool that can be used to evaluate and optimize switching performance of Wolfspeed’s WolfPACK™ GM3 Silicon Carbide (SiC) half-bridge power modules. A clamped inductive load (CIL) test circuit with current measurement provides a high speed; low inductance test fixture for double pulse testing. This test fixture in conjunction with a choice of gate driver boards options allows measurement of:

• • Timing (TDelay-On, TDelay-Off, TRise, TFall)
• • Overshoot (VDS-Max, ID-Max)
• • Speed (di/dt, dv/dt)
• • Switching Loss (EON, EOFF, ERR)

Silicon Carbide Evaluation Board Features

• • Optimized for Wolfspeed’s WolfPACK™ Silicon Carbide half bridge power modules
• • DC bus voltage up to 1000V
• • On Board 200uF Bulk Capacitor and High Frequency Film Capacitor Bank
• • High speed; low inductance layout with stray inductance of 4.9nH @10MHz
• • On-board Current Viewing Resistor (CVR)
• • Screw terminal‘s for supply, midpoint and load inductor connections

Wolfspeed WolfPACK Product Portfolio

R(ON) at 25℃	Product SKU	Configuration	Package	Blocking Voltage
11mΩ	CAB011M12FM3	Half-Bridge	FM3	1200V
16mΩ	CAB016M12FM3	Half-Bridge	FM3	1200V
21mΩ	CCB021M12FM3	6-pack	FM3	1200V
32mΩ	CCB032M12FM3	6-pack	FM3	1200V
6mΩ	CAB006M12GM3	Half-Bridge	GM3	1200V
8mΩ	CAB008M12GM3	Half-Bridge	GM3	1200V

Silicon Carbide Evaluation Board Applications

• • EV Fast Charging
• • Industrial Power
• • Uninterruptible Power Supply (UPS)
• • Induction Heating Welding
• • Industrial Motor Drives
• • Power Supplies
• • Solar & Renewable Energy
• • Grid Infrastructure
